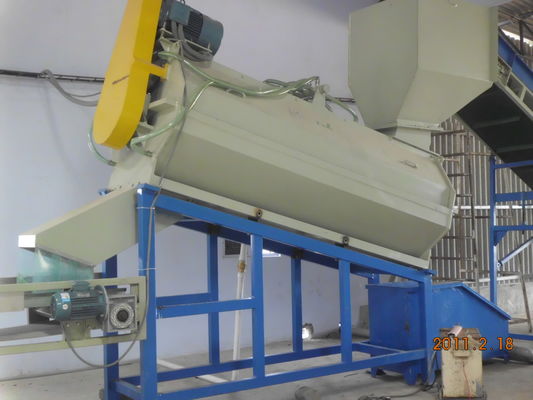

Durable Plastic Bottle Crushing Machine , Waste PET Bottle Recycling Equipment

Durable Plastic Bottle Crushing Machine , Waste PET Bottle Recycling Equipment

Plastic Bottle Crushing Machine Introduction

1.raw material: waste pet bottles
2.capacity:500-3000kg/h according to client's demand
3.function:use waste pet bottles to produce pet flakes, then also granulation.

4. It is special product for washing& crushing& recycling PET bottles, such as the mineral water bottles, oil bottles, etc.. We supply full set of machines which can make waste plastic bottles to flakes.

5. The clean flakes can be used to produce the polyester staple fiber, PET strap band, granules, PET transparent film and sheets, etc. The top class flakes can be used to blow bottles again.

Plastic Bottle Crushing Machine Details

1. Debaler – As PET bottles (with caps & labels) often come in bales, compacted bundles tied together with metal wires, the first stage is to get the material into a “free flowing” stream. The “debaler” breaks apart the bales allowing the plastic bottles within to drop onto the belt conveyor that moves the bottles onto the next step. Learn more about our debaler machine.
2. Crusher – The materials entered from feed hopper to crushing chamber and crushed by utilizing the rotating impact of revolving force and simultaneous shearing of fixed force and moving force. Different grain sizes are available by changing sifting screen with holes in different sizes. It is designed to break up all kinds of soft and hard plastic, such as plastic film, plastic bottle, PVC pipe, rubber and other waste material.
3. Sink / Float Separation Tank – A large tank of water used to separate materials that sink from those that float. This is the final separation equipment in our PET bottle washing line that effectively removes the left over plastic films from labels and PP/PE bottles caps. As both the labels and bottle caps float in water, the sinking PET flakes can easily be removed to be further processed in the next piece of equipment.
4. Hot Washer – Similar to a washing machine in nature, this stream of PET flakes are washed using boiling hot water which sterilizes and further gets rid of contaminants such as glues (from the labels being glued on), grease/oils, and difficult to remove left-overs (beverage/foods) from the equation.
5. Friction Washer – A secondary friction washer (cold water) is used to cool and further clean the PET flakes in a scrubbing manner.
6. High Speed Dewatering Machine – The dewatering machine uses centrifugal or “spinning” force to remove a portion of the water from the PET flakes. It’s a cost-effective way to dry the PET flakes before it’s thermally dried. Thermal drying consumes much more energy.
7. Thermal Dryer + Cyclone Separator – The partially dried PET flakes can now be completely dried using the thermal dryers. Within the long tubes of the thermal dryers, hot air and the PET flakes are mixed together where the leftover moisture is dehydrated. The final cyclone separator mixes the hot, moist air with a flow of cold air cooling the PET flakes in preparation for storage. The cyclone separator is also the last defence against fines such as dust.
8. Silo – A large storage tank for the clean, dry PET flakes.

Plastic Bottle Crushing Machine Advantage

1. Uses high quality steel material especially for making cutter of the crushers.
2. The blades can be grinded for many times and can be used repeatedly.
3. Easy to clean and maintain; The hopper, crusher room, blades and screen can be removed and mounted easily.
4. To crush all kinds of soft and hard plastic. High reliability, High efficiency and other plastic recycling industry.
