Long Using Life Plastic Washing Recycling Machine With PLC Touch Screen Control

Certification
China SUZHOU STPLAS MACHINERY CO.,LTD certification
China SUZHOU STPLAS MACHINERY CO.,LTD certification
We bought PET washing line, PE film washing line from Shadow already four years ago , but we still use it very well , thanks for Shadow's kindly service, we will expend of our business and will buy another new line from STPLAS.

—— Sophia Bachtsevani

Hi , my name is Alexander from Russia, and we are very glad to have a glace chance to buy shredder from STPLAS, and they have good qualities, and good service, She is a very friendly madam. Hope can buy more machine from you in the future.

—— Alexander

I'm Online Chat Now

Long Using Life Plastic Washing Recycling Machine With PLC Touch Screen Control

Long Using Life Plastic Washing Recycling Machine With PLC Touch Screen Control
Long Using Life Plastic Washing Recycling Machine With PLC Touch Screen Control

Large Image :  Long Using Life Plastic Washing Recycling Machine With PLC Touch Screen Control

Product Details:
Place of Origin: CHINA
Brand Name: STPLAS
Certification: CE
Model Number: ST-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact Us
Packaging Details: film packing suit for shipping
Delivery Time: 30-80days
Payment Terms: T/T, L/C
Supply Ability: 10 lines/year
Detailed Product Description
Name: Plastic Washing Recycling Machine Motor Power: 30kw
Water Pump Power: 5.5kw Rotational Speed: 500rpm
Installation Power: 307KW Water Consumption: 3.5Ton/h
High Light:

pet bottle recycling machine

,

plastic bottle recycling equipment

Long Using Life Plastic Washing Recycling Machine With PLC Touch Screen Control



Plastic Washing Recycling Machine has two different washer, so PP PE HDPE is one line, PET bottle washer plant is the other line. Because the PP PE material is floating over the water, but the pet material is under the water, According to this characteristic, they need to separate.



Suit for these kind bottles recycle:



PP PE milk bottles washer, PP PE cola bottles washer, PP PE shampoo bottle washer, PP PE oil barrel washer, PET drinking bottles washer.





STPLAS MACHINERY new steam washer has a special design for discharging the label and bottle cap which float on the water.This new design improves the quality of the clean flakes.



Plastic Washing Recycling Machine​ Description:



-This pet flake hot washer machine is used for mixing waste HDPE PET bottle scrap.

-The material will stay at hot washer for 8-10 minutes, and the hot washer steamer feed with chemical (caustic Soda/NaOH/or other detergent) , and the temperature should be keep 90-95℃.

-this system can be used Gas, electric and diesel to steam the hot washer according the customer requirement.

-Rotor shaft inside hot washer is made by stainless steel.



Plastic Washing Recycling Machine parameter



1 Main motor power 7.5KW
2 Rotating Speed 17r/min
3 Diameter of barrel 1700mm
4 Depth 2250mm
5 Volum of barrel 4.5m3



Plastic Washing Recycling Machine​ Application:



As recycling line for waste bottles, the machine is suitable for recycling all kinds of
PET bottles, such as drink bottles, yogurt bottles, laundry detergent bottles and etc.



Plastic Washing Recycling Machine Features:

  • Low noise , Reasonable design
  • The material of blade is SKD-II, Durable.
  • The part with water are all stainless steel 304
  • The wringing machine is used for the dewatering part, which has large output and high efficiency. It does not need hot air drying, which greatly reduces electricity consumption.

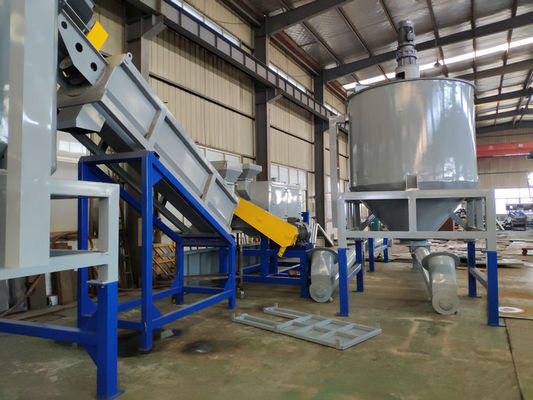

Long Using Life Plastic Washing Recycling Machine With PLC Touch Screen Control 0

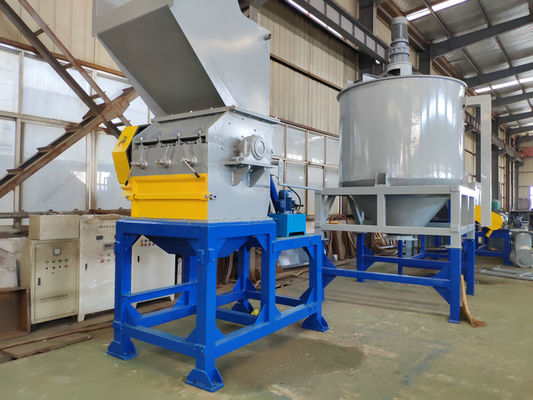

Long Using Life Plastic Washing Recycling Machine With PLC Touch Screen Control 1
