Product Details:
Payment & Shipping Terms:
|
| Application:: | PVC Mixer | Warranty: | One Year For Free And Lifetime Maintenance |
|---|---|---|---|
| Mixer Used: | Vertical Type/Horizontal Type | Compounds Distribution Method: | Auto |
| Inverter: | ABB | Workshop Structure: | Multi Or Single Floor |
| High Light: | auxiliary equipment,auxiliary machinery |
||
SRL-Z 500/1000 PVC power mixer in plastic mixer
SRL-Z series high speed mixer unit is widely used in mixing, drying, coloring various kinds of resin such as PVC, PP, PE., they can also be used in dryness of ABS and polycarbonate, and mixing polycarbonate , hydroxybenzene, aldehyde resin.
lnstruction of stainless steel PVC powder SRL-Z 500/1000 mixer mixer.
1. PVC mixer is the most ideal machinery for manufacturing tubes and profiles in the process of compound mixing, drying and dying.
2. The cold mixer adopts vertical structure with the characteristics of large cooling area and more homogenized material.
3. Both hot and cold mixing blades and belt wheel have been specially through the balancing machine of static and dynamic.
4. The mixer lid is double sealed and opened in pneumatic way.
5. Optionally equipped with pulse dust collecting device and simple loading system.
6. The electric control system uses RKC, Siemens, Mitsubishi, Omron and other famous instruments and control components to realize automatic control.
Main technical parameter of SRL-Z 500/1000 PVC powder mixer
| Model | SRL-Z100/200A | SRL-Z200/500A | SRL-Z300/600A | SRL-Z500/1000A | SRL-Z800/1600A |
| Capacity(L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
| Effective capacity(L) | 65/130 | 150/320 | 225/380 | 375/650 | 600/1050 |
| Paddle(rpm) | 650/1300/180 | 475/950/130 | 475/950/130 | 430/860/60 | 370/740/50 |
| Motor&Heating power(KW) | | 30/42/11 | 40/55/11 | 47/67/18.5 | 55/75/15 |
| Gases Consumption (min) | 3 | 5 | 5 | 5.8 | 6.8 |
| Heating method | | ||||
| Discharge method | | ||||
| Dimension(mm) | 3780*1870*2250 | 4580*2240*2470 | 4800*2640*2480 | 4600*3000*4050 | 5170*3200*4480 |
| Weight(T) | 2.2T | 3.4T | 3.6T | 4.8T | 6.2T |

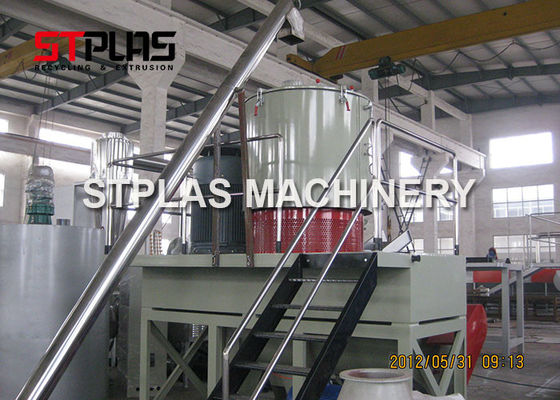

More Photos of 500/1000 PVC power mixer
If you want to know more informations, welcome to contact with us.
