Plastic Single Screw Extruder For Extruding PVC PE PP PET ABS Material

Plastic Single Screw Extruder For Extruding PVC PE PP PET ABS Material
Plastic Single Screw Extruder For Extruding PVC PE PP PET ABS Material

Large Image :  Plastic Single Screw Extruder For Extruding PVC PE PP PET ABS Material

Product Details:
Place of Origin: JIANGSU,CHINA
Brand Name: STPLAS
Certification: CE
Model Number: STPLAS 08
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact Us
Packaging Details: film or plywood package suit for shipping
Delivery Time: 30-45days
Supply Ability: 30 sets/month
Detailed Product Description
Screw Design: Single/Double Voltage: 380V 50HZ 3Phase(Customized)
Screw Material: Bimetallic Feeder Material: Stainless Steel 304
High Light:

single screw extruder machine

,

single screw extruder



Plastic PP PE PPR PC ABS pipe/profile single screw extruder





Single Screw Plastic Extruder:


1. Adopt the single screw extruder, and mainly used in extruding PVC, PE, PP, PET, ABS and so on
2. The extruder using the special designed single screw making the product foaming well.
3. Screw material: High quality alloy steel-38GrMoAlA, after high-temperature nitriding, nitriding depth: 0.5-07mm, the surface hardness HV740-940.
4. Barrel temperature control though two sections, the cast aluminum ring heater provide the hot temperature while the cooling fan with the help of air control the temperature zone.

5. The reduction box adopt the Germany technical which have long life span, low noise and lower hot.
6. The control panel: AC/DC motor, SIMENS contactor.



SPECIFICATIONS for Single-screw Extruder
Extruder model Max Output (kg/h) Total power(kw)
SJ45/30 40-80 15/18.5
SJ50/30 80-110 18.5/22
SJ65/33 200-350 55/75
SJ75/33 550-650 90/110
SJ90/33 750-850 160
SJ120/33 950-1100 280
SJ150/33 1100-1200 315

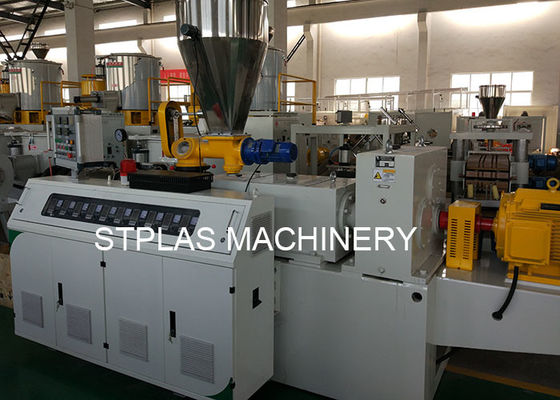

More Photos of plastic pipe extrusion production line:



Plastic Single Screw Extruder For Extruding PVC PE PP PET ABS Material 0



If you want to know more informations ,contact with us freely.
