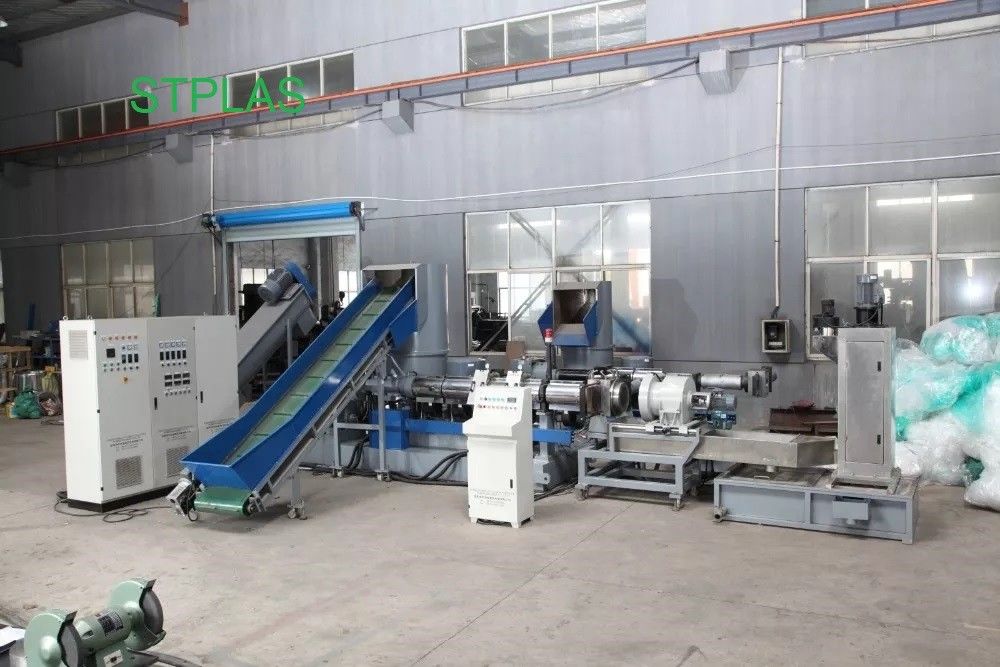

Waste Textile PET Fiber Twin Screw Plastic Extruder

Certification
China SUZHOU STPLAS MACHINERY CO.,LTD certification
China SUZHOU STPLAS MACHINERY CO.,LTD certification
We bought PET washing line, PE film washing line from Shadow already four years ago , but we still use it very well , thanks for Shadow's kindly service, we will expend of our business and will buy another new line from STPLAS.

—— Sophia Bachtsevani

Hi , my name is Alexander from Russia, and we are very glad to have a glace chance to buy shredder from STPLAS, and they have good qualities, and good service, She is a very friendly madam. Hope can buy more machine from you in the future.

—— Alexander

I'm Online Chat Now

Waste Textile PET Fiber Twin Screw Plastic Extruder

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Waste Textile PET Fiber Twin Screw Plastic Extruder

Product Details:
Place of Origin: CHINA
Brand Name: STPLAS
Certification: CE
Model Number: SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Contact Us
Packaging Details: film scraping with wooden pallet for pet granulator machine
Delivery Time: 30-80days
Payment Terms: T/T
Supply Ability: 20 Set/Sets per Year pet granulator machine
Detailed Product Description
Raw Material:: PET Fiber And Fabric Material Processed:: Compacting ---Plasticizing ---Cutting ---Drying
Product Name:: Pet Waste Plastic Recycling Granulator Machine For Plastic Applicable Industries: Garment Shops, Manufacturing Plant
Twin Screw Type:: Co-rotating Parallel Twin-screw Power (kW):: 55-200kw
Cutting Method:: Die-face Cutting Screw Design:: Double
Keywords:: PP Fabric Agglomerator
High Light:

PET fiber Twin Screw Plastic Extruder

,

Waste textile Twin Screw Plastic Extruder

,

Waste textile Fiber Pelletizer Granulator

Fiber Pelletizer Granulator Machine Description:


Fiber pelletier machine can recycle fiber directly without the upstream pre-shredding, reduction in operational costs, this non woven fabric granulator machine can feeding with fabric roller and waste non woven fibers. The plastic granulating line’s material is cut, pre-dried, pre-heated, pre-homogenized and compacted in the shredding drum.
Many materials can be processed directly without the need for upstream pre-shredding, resulting in a dramatic reduction in plastic granulating line costs.
Less power consumption cost per kilogram, plastic granulating line high throughput, reduced floor space occupation and operator attendance.
Double stage pelletizing line is especially good for the raw material which contains high moisture, high impurities.
The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and contamination;
And the second extruder usually adopts a small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.

Two Stage mother baby plastic pelletizing machine

Model
STSJ90/90
STSJ100/100
STSJ120/120
STSJ130/130
STSJ160/160
SJ180/200
Screw Dia.
90
100
120
130
160
180
L/D Ratio
28:1/10:1
28:1/10:1
28:1/10:1
28:1/10:1
28:1/10:1
28:1/10:1
Capacity(kg/h)
150-200
200-250
250-350
450-550
650-800
800-1000
First Stage Motor (kw)
55
75
90
132
160
250
Second Stage Motor (kw)
22
30
37
45
55
75
Total Electric Power(kw)
150
185
220
285
350
490



Process flow:

Screw feeding→Dosing feeder → parallel twin screw extruder → Roots vacuum degassing system → hydralic screen exchanger →Die mould→ water cooling tank → pelletizer → dewatering → storage hopper
Waste Textile PET Fiber Twin Screw Plastic Extruder 0

Screw loader and Dehumidify (Optional choose)

Drying the PET flakes before pelleting.
Waste Textile PET Fiber Twin Screw Plastic Extruder 1

Cooling tank

Water cooling the noodles
Waste Textile PET Fiber Twin Screw Plastic Extruder 2


Die mould

Material come out in noodles.

Waste Textile PET Fiber Twin Screw Plastic Extruder 3

Fiber Pelletizer Granulator Machine Features :
1. Allow free assembling of the screw component, based on raw material type.
2. Using the suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting.
3. High efficient force feeder ensures stable high capacity material feeding, low power consumption.
4. Main screw has vacuum exhaustion.
5. Water ring granulator machine, attached with dryer.
6. Single screw extruder, with specially designed screw, barrel, venting system, ensure the good quality of the final products.
7. Pelletizing style: standard cutting with extrusion mould. Even cutting ensures good shape.
