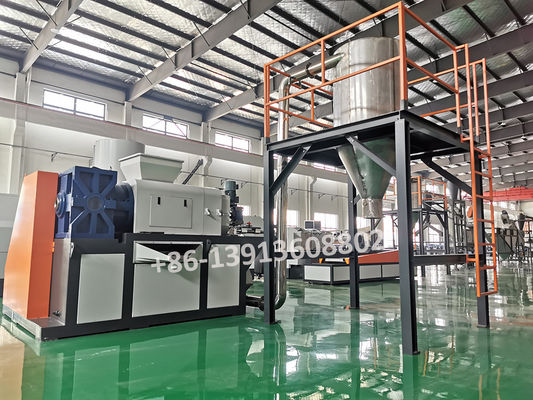

Plastic Polyethylene Film Extrusion Machine 160kw 1000kg/H

Plastic Polyethylene Film Extrusion Machine 160kw 1000kg/H
Plastic Polyethylene Film Extrusion Machine 160kw 1000kg/H

Large Image :  Plastic Polyethylene Film Extrusion Machine 160kw 1000kg/H

Product Details:
Place of Origin: JIANGSU,CHINA
Brand Name: STPLAS
Certification: CE,ISO9001
Model Number: ST1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 27000USD
Packaging Details: film or wood package suit for shipping
Supply Ability: 10 set/month
Detailed Product Description
Certification: CE ISO SGS Application: Film Squeezing Machine,waste Plastic Recycling
After-sales Service Provided: Engineers Available To Service Machinery Overseas Condition: New
Warranty: 13month Voltage: Customized
Machine Name: PE Film Plasticizing And Pelletizing Machine Material Processed: PP PE Film Recycling
Plastic Type: PP PE HDPE LDPE Plastic Film Flakes Final Product: Dry PE PP Pellets
Type: Plastic Recycling Granulating
High Light:

160kw polyethylene film extrusion


polyethylene film extrusion 1000kg/h


plastic polyethylene film extrusion machine

Plastic PE film extruding, plasticizing and pelletizing machine 160KW 1000kg/h


The squeezing and granulating integrated machine developed by SUZHOU STPLAS integrates the functions of a dehydrator, a dryer, and a pelletizing machine, which simplifies the process of squeezing and granulating film woven bags. The machine adopts electromagnetic heating, which can quickly heat up. Stable, greatly saving the cost of electric energy and machine investment, and improving production efficiency. After the membrane material woven bag is crushed and cleaned, there is a lot of water content. Granulation with water has relatively high requirements for the heating system of the machine, the motor load is large, the output is low, the granulator equipment is difficult to operate normally and stably, and the economic benefit is low. Our company specially developed an all-in-one extruding and granulating machine for this kind of water-washed film material. The machine adopts the principle of extruding dehydration and granulation. Plastic film (including plastic film, plastic agricultural film mulch, PP woven bag, snake skin bag, space bag) , Ton bags, thin sheets of waste plastics, etc.) After cleaning, the water can be quickly squeezed clean and pelletized.


Now this squeeze pelletizer is very popular on the market, and it is loved by most film users. The SUZHOU STPLAS technology is quite mature.

Plastic Polyethylene Film Extrusion Machine 160kw 1000kg/H 0


Machine process:

Plastic Polyethylene Film Extrusion Machine 160kw 1000kg/H 1


Main Technical parameter:

Model STSQ-1000
Capacity 800-1000kg/h
Screw Diameter Φ350mm(38CRMOAL)
Rotary Speed 60rpm
Main Motor power 160KW
Heating Power 12KW
Cutting pellet motor 5.5KW
Pellets size 12-20mm
Fan Power 7.5KW
Storage Hopper 1m3(stainless steel)
Inlet size 550*290mm
Dimension 3600×2350×2500mm
Weight 6.2tons


Suzhou Stplas Machinery also can supply waste PP PE film crushing washing drying line(300-1500kg/h) and PP PE film pelletizing line (200-1000kg/h).
