Product Details:
Payment & Shipping Terms:
|
| Material: | 304 Stainless Steel | Screw: | Single Screw |
|---|---|---|---|
| Cutter: | With Cutter | Final Products: | Pellets |
| Warranty: | 12 Months For Free And Lifetime Maintenance | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Certification: | CE,ISO9001,SGS | Application: | Film Squeezing Machine |
| Condition: | New | Warranty: | 13month |
| Voltage: | 380V 50 HZ 3P | ||
| High Light: | 1000kg/h film recycling machine,800kg/h film recycling machine,hdpe film recycling machine |
||

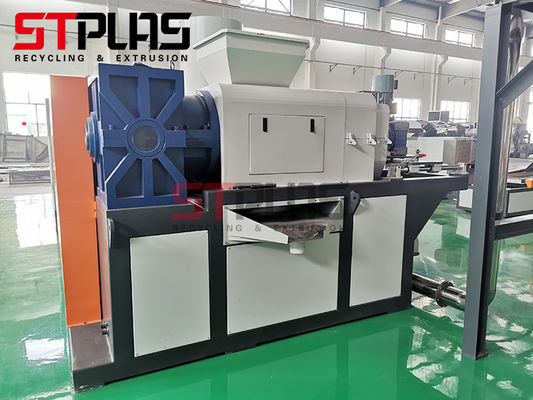

300-1000kg/hr HDPE PE LDPE PP film raffia bag squeezing pelletizing machine
Description:
STPLAS PP raffia bag force on dewatering, squeezing, agglomerating three machine to one unit, Simplified the process of squeezing and granulating film woven bags, The machine adopts electromagnetic heating method, heating is fast and stable, which greatly saves the cost of electrical energy and machine investment, and improves production efficiency.
Features :
1. Plastic PE film squeezer dewatering machine which takes advanced Italian techniques as reference, especially the screw pressing dewatering design.
2. Then agglomerating the film scrap by the self-friction heat. The heating mould equiped with high speed cutting blade, so the size of the final pellet is customized.
3. PE film squeezing dryer dry HDPE LDPE films by screw pressing. Final moisture content is around 3-5%. Compared with traditional hot air dryer and dewater, PE film squeezing dryer is low power consumption, big capacity, high efficiency.
Technical Parameter:
| Model | STSQ-1000 |
| Capacity | 800-1000kg/h |
| Screw Diameter | Φ350mm(38CRMOAL) |
| Rotary Speed | 60rpm |
| Main Motor power | 160KW |
| Heating Power | 12KW |
| Cutting pellet motor | 5.5KW |
| Pellets size | 12-20mm |
| Fan Power | 7.5KW |
| Storage Hopper | 1m3(stainless steel) |
| Inlet size | 550*290mm |
| Dimension | 3600×2350×2500mm |
| Weight | 6.2tons |
More Photos:
The complete PE PP film bags crushing washing drying system we also supply:
If you want to know more informations ,welcome to contact with us.
