300kg/H Single Screw Sgs Plastic Squeezing Machine Film Granulator

300kg/H Single Screw Sgs Plastic Squeezing Machine Film Granulator
300kg/H Single Screw Sgs Plastic Squeezing Machine Film Granulator

Large Image :  300kg/H Single Screw Sgs Plastic Squeezing Machine Film Granulator

Product Details:
Place of Origin: JIANGSU,CHINA
Brand Name: STPLAS
Certification: CE SGS
Model Number: STPLAS 14
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: contact us
Packaging Details: film or plywood packing suit for shipping
Delivery Time: 30-45days
Supply Ability: 20 sets/month
Detailed Product Description
Material: 304 Stainless Steel Screw: Single Screw
Cutter: With Cutter Final Products: Pellets
Warranty: 12 Months For Free And Lifetime Maintenance After-sales Service Provided: Engineers Available To Service Machinery Overseas
Certification: CE,ISO9001,SGS Application: Film Squeezing Machine
Warranty: 13month Voltage: Customized
High Light:

300kg/h plastic squeezing machine

,

single screw plastic squeezing machine

,

SGS plastic squeezing machine

Plastic film squeezing granulator PP PE Film dehydration and recycling machine 300kg/h



Product description :

Plastic film squeezing granulator machine is very popular in plastic film recycle area, it can add cutter after screw, so that can achieve dryer and cutter in one unit.

The complete film recycling machine include belt conveyor, crusher, friction washer, floating washer, friction washer, floating washer then dehydration machine, film squeezing cutter.

300/500/1000kg/h capacity for your choice.



Features :

  •  Plastic PE film dehydration machine which takes advanced Italian techniques as reference, especially the screw

pressing dewatering design.

  • used Plastic PE film squeezer granulator is used for drying washed film and make it like granules. After film squeezing machine the granules can put into extruder directly.
  • used Plastic film squeezer dewatering machine save 3 machines after washing line. Save one dewatering machine, one drying system, and one agglomerator. It almost saved 200kw for one line.
  • The final moisture content is below 2%



Technical parameter :



No Capacity Main motor power Pelletizer motor Screw diameter
1 300kg/h 90kw 3kw 300mm
2 500kg/h 132kw 4kw 320mm
3 1000kg/h 160kw 5.5kw 350mm

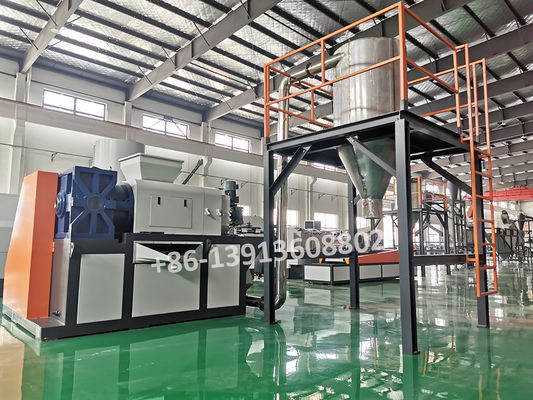

More Photos of waste film drying machine:



300kg/H Single Screw Sgs Plastic Squeezing Machine Film Granulator 0



The complete plastic film recycling crushing washing line STPLAS MACHINERY also supply.

300kg/H Single Screw Sgs Plastic Squeezing Machine Film Granulator 1



If you want to know more informations ,welcome to contact with us.
