Heavy Duty Ss304 Pp Washing Machine With D2 Blades Crusher

large.img.alt
large.img.alt

Large Image :  Heavy Duty Ss304 Pp Washing Machine With D2 Blades Crusher

Product Details:
Place of Origin: JIANGSU,CHINA
Brand Name: STPLAS
Certification: CE SGS
Model Number: BXHDPE
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Contact us
Packaging Details: film or plywood package suit for shipment.
Delivery Time: 60-90 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets/month
Detailed Product Description
Suitable Material: PP PE HDPE LDPE Keywords: HDPE Bottle Washing Machine / LDPE Film Washing Machine
Materials: SUS304 (All Parts Connected With Water) Motor: Siemens Beider
Service Life: Over 8 Years(Except For Wearing Parts) Warranty: 12 Months
High Light:

D2 Blades Pp Washing Machine

,

Ss304 Pp Washing Machine

,

Beider motor Pp Washing Machine

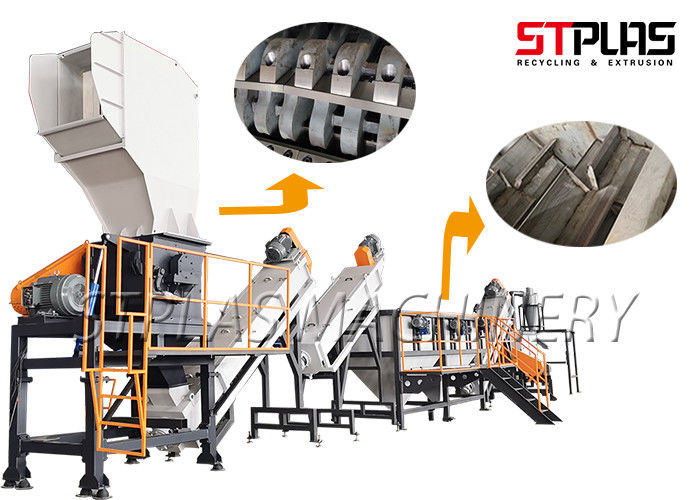

Heavy Duty PP/PE Pallets Washing Machine with D2 Blades Crusher

Description:



This PP/PE pallets washing machine is suitable for many kinds of soft plastic materials, such as PP, HDPE, LDPE, LLDPE film, bags, woven bag materials, etc...Final size can meet 8-16mm. The capacity ranges from 300kg/h to 3000kg/h.
Our machines are simple and easy to operate, saving labor costs. The recovery rate is relatively higher than that of its peers.
Crushers in all our machine line, we use D2 blades, not SKD-11.
All parts connect with water, we use SUS304.


Process flow:

♦ Conveyor belt: transport of contaminated plastic to the crusher. If there is too much debris, a metal detector will be needed;

♦ Crusher: can crush with water, cut plastic debris into small pieces;

♦ Friction washing machine: seperate sand, dirt and loading material;

♦ Wash tank: separate sand, dirt and other impurities;

♦ De-watering machine: remove water from the material;

♦ Silo: temporary storage of flakes.



1000kg/h PP/PE Plastic Washing Machine Configuration reference:

NO. Name Qty(set)
1 Belt conveyor 1
2 Crusher (including platform) 1
3 High speed friction washer 1
4 Steam washer (including platform) 1
5 High speed friction washer 1
6 Floating washer (including platform) 1
7 Screw loader 1
8 De-watering machine 1
9 Silo 1
10 Control Panel 1



Heavy Duty Ss304 Pp Washing Machine With D2 Blades Crusher 0



Heavy Duty Ss304 Pp Washing Machine With D2 Blades Crusher 1



This machine line also suitable for PP/PE films, woven bags and other soft materials. Just change crusher screen, you can use it directly!





Our engineers have more than 15 years of rich experience. Thanks to their efforts, our machines are among the best in China in terms of technology and quality.
