20ppm 500kg/H Pet Bottle Washing Line

20ppm 500kg/H Pet Bottle Washing Line
20ppm 500kg/H Pet Bottle Washing Line

Large Image :  20ppm 500kg/H Pet Bottle Washing Line

Product Details:
Place of Origin: JIANGSU,CHINA
Brand Name: STPLAS
Certification: CE SGS
Model Number: STPLAS BXPET
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Contact us
Packaging Details: film or plywood package suit for shipment.
Delivery Time: 60-90 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets/month
Detailed Product Description
Application: Plastic Recycling Raw Material: Post Consumer PET Bottles
Automatic Grade: Automatic Keywords: Pet Flakes Bottle Crushing Hot Washing Machine Drying Recycling Line
Capacity: 500/1000/2000/3000/5000kg/h Warranty: 12 Month
After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

500kg/h pet bottle washing line


500kg/h pet washing line


20ppm Pet Bottle Washing Line

500kg/h Fiber Level PET Bottles Crushing Hot Washing Drying Recycling Machine

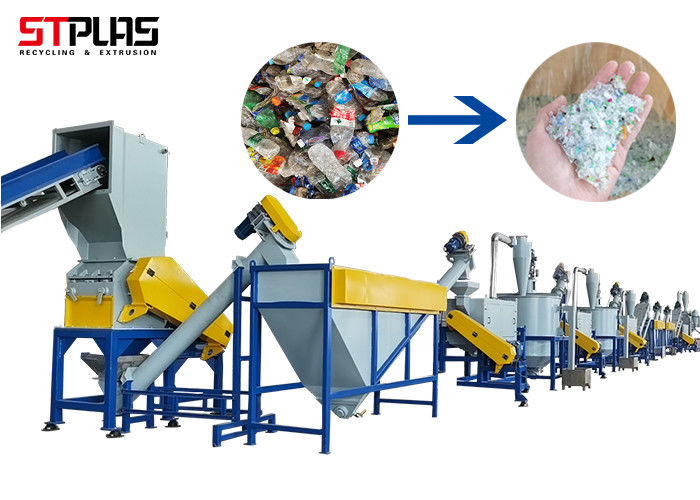

• The PET plastic bottle recycling machine is mainly used to recycle waste PET bottles, water bottles, cola bottles, etc.

• The recycling line for washing PET bottles includes: conveyor belt, label extractor (dry or wet type), sorting system, metal detection system, plastic granulator or grinder, float wash tank, hot wash system, friction washer, dewatering machine, thermal dryer, label / dust / lamellar separator and packaging system.
• The above machines can easily remove labels, caps, rings, glue, dirt and other contaminants. After all, you get the perfect PET flakes.
• All line requirements for recycling, drying, washing and shredding your pet bottles can be customized.



• Labor savings. The bale feeding and opening system provided by us ensures a uniform material flow.
• You can use the manual sorting system to select bottles of different colors and non-PET materials.
• A metal detector is optional and is used to extract any metal from PET bottles.
• The specially designed PET bottle granulator can easily achieve high performance, and the wet water treatment can
reduce wear on the blades.
• The high speed dewatering machine and drying system will ensure the moisture content of the final PET flakes <2%.
• Zig-zag label blower will remove the last labels from the flakes to guarantee the PVC content.


Quality Sheet of Final PET Flakes:

Moisture Glue PP/PE Metal Label PVC Total Impurity
≤1.5ppm ≤30ppm ≤20ppm ≤20ppm ≤30ppm ≤100ppm ≤200ppm

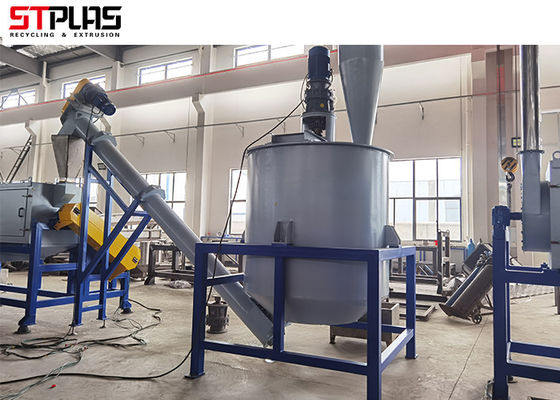

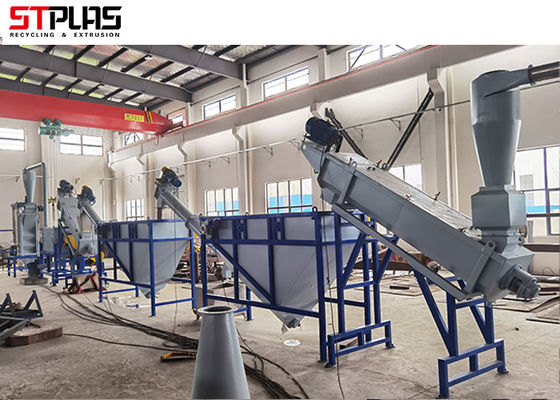

Photo Show:

20ppm 500kg/H Pet Bottle Washing Line 0


20ppm 500kg/H Pet Bottle Washing Line 1


20ppm 500kg/H Pet Bottle Washing Line 2


Welcome to ask for more details.
