Product Details:
Payment & Shipping Terms:
|
Shaft Design: | Single | Voltage: | According To Customer Requires |
---|---|---|---|
Power(w): | 15-110kw | Capacity: | 200-2000kg/h |
Blades Material: | 9CrSi/D2/SKD-11 | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
High Light: | cardboard shredder,double shaft shredder |

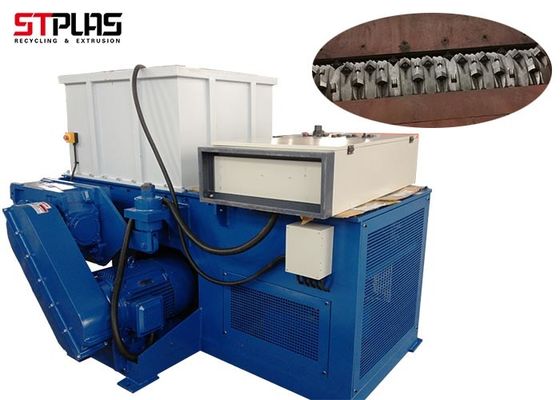

Waste Plastic Single Shaft Shredder Machine One Shaft Shredding Machine with D2
Description:
Single/One shaft shredder is used for plastic lumps,die material, big block material, HDPE, PVC thick wall
pipe and other plastic material which is difficult to process by the crusher machine. It is with good shaft
structure design, low noise, durable use and the blades are changeable.
Features:
1.The shredder machine with big feeding mouth, it can put the big plastic or rubber product freely.
2.The rotary and cutting blade with edge of special design, it can get very high efficiency and high capacity.
3.The shredder machine is control by PLC system; the blade can rotate inopposite direction and close automatically if something unexpected happens; with very high safety service.
4.The shredder machine runs slowly with low noise and less dusty.
5.The blade material with special alloy steel made, with long life
Parameter:
Model | ST1-600 | ST1-800 | ST1-1000 | ST1-1200 |
Number of Fixing Blade (pcs) | 1 | 2 | 2 | 2 |
Number of rotator Blade (pcs) | 30 | 56 | 56 | 84 |
Main Shaft Diameter(mm) | 220 | 320 | 350 | 380 |
Motor Power(KW) | 22/30 | 37 | 45/55 | 55/75 |
Capacity(kg/h) | 300-500 | 500-800 | 600-1000 | 1000-1500 |
Pictures for More Details:
If you are interested in our machine, we are looking forward to your inquiry!
We are professional manufacturer of waste plastic recycling machine with more than 15 years experience!
And you are welcomed to my factory to see the pet bottle /films crushing and washing machine/pet bottle recycling line .We design and produce all the pet bottle/films crushing and washing machine pet bottle/films recycling line by ourself.
Contact Person: Shadow Fan
Tel: 0086 139 1360 8802
