Payment & Shipping Terms:
|Application:||Recycled Industry||Plastic Type:||PP/PE,PET,PP,PVC,PE|
|Voltage:||According To Customer Requires||Power(w):||18.5-90kw|
|Blades Material:||9CrSi/D2/SKD-11||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
double shaft shredder,
wood shredder machine

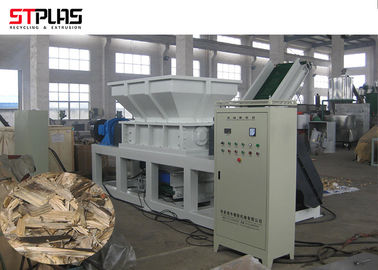

D2 Blades Plastic Shredder Machine Two Shaft Shredding Machine Bottle Shredder

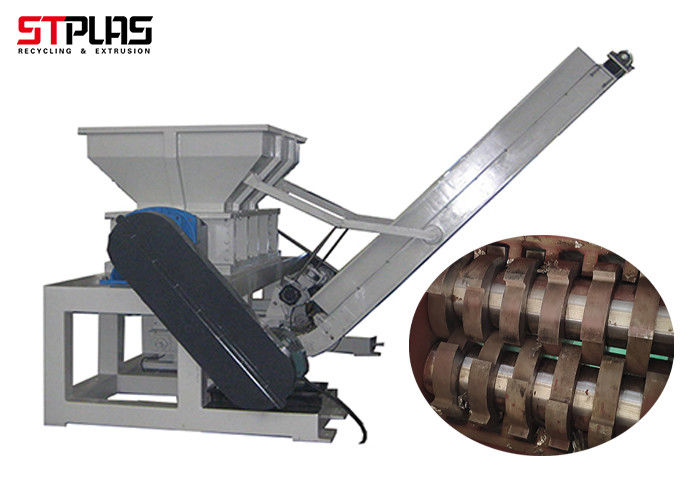

Double shaft shredder is compose of main motor, hard-tooth gear box, rotator blade, rotator screw, machine frame, machine base, machine box, Work platform etc.
The fixing blade is mounted on the frame, and the rotary cutter shaft is equipped with a detachable embedded rotator blades. The number of movable cutters is determined according to different models and the size of the rotating cutter shaft, and the blunt can be removed and then sharpened, thereby greatly saving the maintenance cost. Increase the service life of the machine. Because it is a claw type rotating blade, rotary cutting, and the rotating blade is made of imported SKD11 material. After heat treatment, the hardness reaches HRC60° or more. The service life is long, the cutting ability is strong, and the production capacity is high.
1. Blades are D2 or SKD-II (or customized)
2. Electronic components are a combination of Siemens and Schneider (or customized)
3. Entire frame made up by thick steel board, low maintainance, economy and durability.
4. The knives use imported high-quality alloy steel, with high strength, good toughness, not easy to break and so on. And to ensure that there is good blade in the work, disassembly, and easy to maintenance.
Parts of ST2-600 Parameter:
|Number of Rotating Blade||12 Pieces|
|Number of Fixing Blade||12 Pieces|
|Material of Blade||SKD-11 or D2|
More Detail Pictures:
Customer requirements →Scheme designed →confirmed by customers →order fixed →manufacturing →trial running in our factory →confirmed by customers →shipped →engineer available overseas →whole life after sales services
