Product Details:
Payment & Shipping Terms:
|
Name: | Plastic Waste Recycling Machine | Screw Dia.: | 90 |
---|---|---|---|
L/D Ratio: | 28:1/10:1 | Capacity (kg/h): | 150-200 |
First Stage Motor (kw): | 55 | Second Stage Motor(kw): | 22 |
Material: | PE | Application:: | Used For Plastic Film, Woven Bag Crushing Cleaning |
High Light: | plastic pelletizing machine,plastic pelletizer |

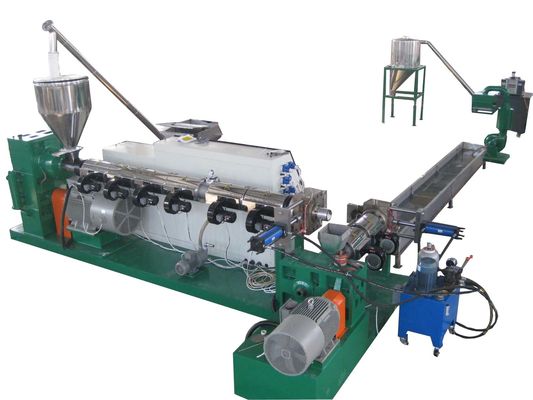

High Speed Plastic Recycling Pellet Machine Belt Conveyor , Agglomerator , Extruder
Plastic Recycling Pellet Machine Introduction
The Plastic Recycling Pellet Machine is mainly used for granulation of recycled plastics. With special screw design and different configurations, it is also suitable for the regeneration and mixed color granulation of PP, PE, PET, PS, ABS, PA, PVC, PC, POM, EVA, PMMA and other plastics.
Single screw, double screw (flat double, cone double) can be used according to the user's requirements or feeding characteristics.The main machine is equipped with dewatering device, which can directly process waste plastic with water, simple and efficient.
This set has a complete production machine line, it can be automatically and continuously produced, direct and clean granulation, non-pollution and non-aging phenomenon, which greatly reduces production cost and improves production efficiency. The machine has small size, high efficiency, good performance, low power consumption, high quality of finished products and wide adaptability.
The gearbox is designed with high torque to achieve noise free and smooth operation.
The screw and barrel are specially hardened, which has the characteristics of wear resistance, good mixing performance and high yield.
The unit has the advantages of large output, high benefit, stable quality, simple operation and so on. It is the best choice for plastic granulator to develop new products.
Plastic Recycling Pellet Machine Main Features:
Plastic Recycling Pellet Machine Functions:
This plastic pelletizing machine can be displayed "L" or "U" shape according to clients' workshop.
Compacting force feeder
Function: With multi blades crushing and forcedly compressing the material into the extruder.
Single Screw Extruder (first stage):
Function: Plasticizing material with high temperature and exhausting hot gas and moisture.
Single Screw Extruder (second stage)
Function: Further plasticizing and filtering material with high temperature.
Dewatering Machine
Function: Remove out water to dry the pellets.
PP PE flakes pelletizing line
Double stage Main Technical Parameter:
Model | STSJ90/90 | STSJ100/100 | STSJ120/120 | STSJ130/130 | STSJ160/160 | STSJ180/200 |
Screw Dia. | 90 | 100 | 120 | 130 | 160 | 180 |
L/D Ratio | 28:1/10:1 | 28:1/10:1 | 28:1/10:1 | 28:1/10:1 | 28:1/10:1 | 28:1/10:1 |
Capacity (kg/h) | 150-200 | 200-250 | 250-350 | 450-550 | 650-800 | 800-1000 |
First Stage Motor (kw) | 55 | 75 | 90 | 132 | 160 | 250 |
Second Stage Motor(kw) | 22 | 30 | 37 | 45 | 55 | 75 |
Total Electric Power(kw) | 150 | 185 | 220 | 285 | 350 | 490 |
Detailed Pictures
