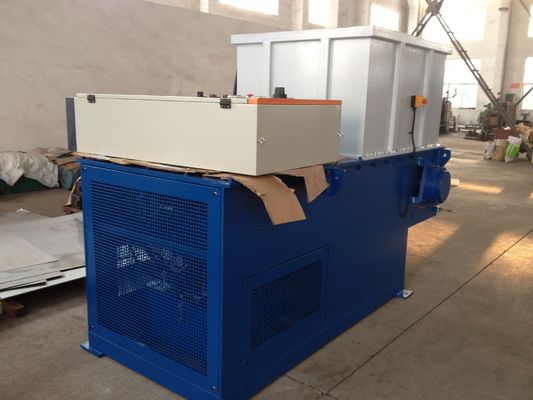

Single Shaft Plastic Shredder Machine For Big Solid Block Plastic High Torque

Single Shaft Plastic Shredder Machine For Big Solid Block Plastic High Torque
Single Shaft Plastic Shredder Machine For Big Solid Block Plastic High Torque

Large Image :  Single Shaft Plastic Shredder Machine For Big Solid Block Plastic High Torque

Product Details:
Place of Origin: JIANGSU,CHINA
Brand Name: STPLAS
Certification: CE
Model Number: ST2-600/800/1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact Us
Packaging Details: film or Plywood package suit for shipping.
Delivery Time: 30-60days
Payment Terms: L/C, T/T
Supply Ability: 30sets/month
Contact Now
Detailed Product Description
Name: Plastic Shredder Machine Motor: 7.5-110KW
Shaft Design: Single Shaft Application: Big Solid Block Plastic
Warranty: 1 Year For Free,Lifetime Maintenance Package: Plywood Or Film
Highlight:

cardboard shredder

,

wood shredder machine

Single Shaft Plastic Shredder Machine For Big Solid Block Plastic High Torque


Single Shaft Shredder introduction :



As per our customers’ requirements, such as the input size of the material, capacity and the final output size etc, we could work out a suitable proposal for our clients. After being shredded by the machine, the output material could be used directly or go into the next step of size reduction. With the function of Siemens microcomputer control system, it is possible to control automatically start, stop, automatic reverse sensors to protect the machine against over loading and jamming.



Single Shaft Shredder features:



  1. Frame plate is thick, resistant to high torque, strong enough.
  2. Setting start, stop, reverse and overload automatic reverse control.
  3. Equipment with low speed, high torque, low noise, dust can meet the environmental standards.
  4. Easy to adjust, low maintenance cost, economical and durable
  5. Blade tool thickness and number of jaws can be changed according to different materials



Single Shaft Shredder Main Parameter



Model Power(KW) Number of revolving knife

thickness of knife

(mm)

Diameter of knife

(mm)

 Number of knife

Dimension of crushing chamber

(mm)

Output

(kg/h)
S2-600 11 12 50 280 5 600*550 300-800
S2-600 15 12 50 280 5 600*550 300-800
S2-800 22 16 50 300 5 800*600 500-1500
S2-800 37 16 50 300 5 800*600 500-1500
S2-1000 2*30 20 50 350 5 1000*700 1000-2000
S2-1200 2*30 24 50 400 5 1200*800 1500-2500
S2-1600 2*37 22 70 450 5 1600*900

2000-3000







What will we do and final make?



Single Shaft Plastic Shredder Machine For Big Solid Block Plastic High Torque 0
