Precision Plastic Shredder Machine With Combinatorial Structures Frame

Precision Plastic Shredder Machine With Combinatorial Structures Frame
Precision Plastic Shredder Machine With Combinatorial Structures Frame

Large Image :  Precision Plastic Shredder Machine With Combinatorial Structures Frame

Product Details:

Place of Origin: JIANGSU,CHINA
Brand Name: STPLAS
Certification: CE
Model Number: ST2-600/800/1000/1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Contact Us
Packaging Details: Plywood package suit for shipping.
Delivery Time: 30-45days
Payment Terms: T/T
Supply Ability: 30sets/month
Detailed Product Description
Certification: CE Plastic Shredder Machine Plastic Type: PE,PP,ABS,PVC,PET,PA SOFT MATERIAL
Shaft Design: Plastic Shredder Machine Final Product: Small Scraps Plastic Shredder Machine
Color: Customized Plastic Shredder Machine Blades Material: 9CrSi/D2/SKD-11
Voltage: 380V 50Hz Or Customized Capacity: 300kg/hr-2000kg/hr
High Light:

double shaft shredder

,

wood shredder machine

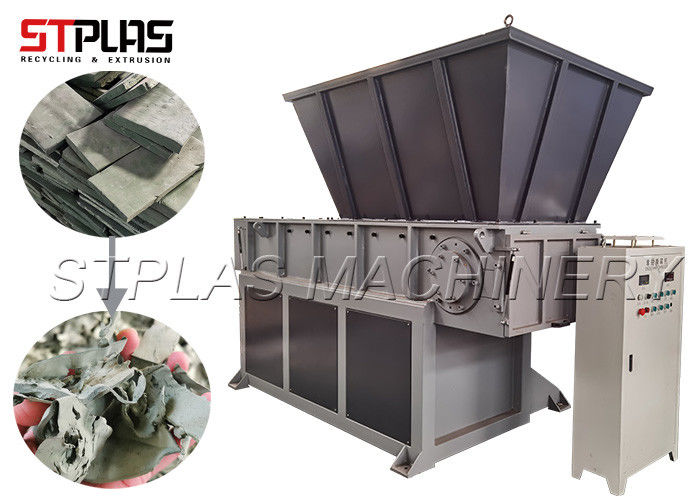

Precision Plastic Shredder Machine With Combinatorial Structures Frame



Single shaft Plastic Shredder Machine Intoduction



Single shaft shredder is used for plastic lumps,die material, big block material, HDPE, PVC thick wall pipe and other plastic material which is difficult to process by the crusher machine. It is with good shaft structure design, low noise, durable use and the blades are changeable.



Plastic Shredder Machin Advantages



1. The shredder single shaft for plastic can shred various bulk materials, basket materials, pipe, plate, sheet, tire, big roll film, which are difficult to be shredded by single shaft shredder.

2. The frame is combinational structures, made from precision machined extra-thick sheet, slewing axis is forced, Lange-angle, hexagonal prism, the hopper is large-caliber, and substantial, so good-sized material is practicable.

3. Revolving knife is designed and processed particular in thickness, shape, arrange order and so on.

4. PLC control system, forward and reverse operate and stop automatically can protect the machine when the materials is too big and much. Operate safely, low-speed running, low noise, little dust.

5. The knife is made from special alloy steel, sturdy and durable.



Plastic Shredder Machin Main Technical Parameter



Model Power(KW) Number of revolving knife thickness of knife Diameter of knife Number of knife Dimension of crushing chamber Output
(mm) (mm) (mm) (kg/h)
S2-600 11 12 50 280 5 600*550 300-800
S2-600 15 12 50 280 5 600*550 300-800
S2-800 22 16 50 300 5 800*600 500-1500
S2-800 37 16 50 300 5 800*600 500-1500
S2-1000 2*30 20 50 350 5 1000*700 1000-2000
S2-1200 2*30 24 50 400 5 1200*800 1500-2500
S2-1600 2*37 22 70 450 5 1600*900 2000-3000



Note:

1. The above machine configuration is the standard configuration of our factory, and the specific configuration will be different for different materials. Please call us for specific conditions or special requirements.

2. Single-shaft shredder knife holders can be divided into three types of knife holders: welded knife holder, detachable knife holder and integrated knife holder. For details, please communicate with our sales staff to confirm the suitable knife holder.



Precision Plastic Shredder Machine With Combinatorial Structures Frame 0



Our company’s main products include plastic washing recycling line, plastic granulating line, various types of plastic shredders, biomass shredders, wood shredders, solid waste shredders, industrial waste shredders and corrosive waste shredders. At the same time, the company provides pictures according to customer requirements. Sample customized non-standard products.
