Product Details:
Payment & Shipping Terms:
|
| Name: | PET Bottle Recycling Plant | Input Capacity: | 1000kg/h |
|---|---|---|---|
| Workshop(M*M*M): | 70m*12m*6m | Ancillary Staff: | 7-8persons |
| Auto: | Yes | Water Consumption: | 7-10ton/h |
| High Light: | pet recycling machine,pet bottle recycling line |
||

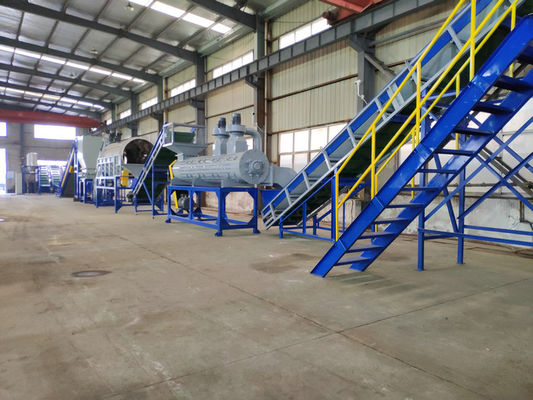

Auto PET Bottle Recycling Plant , Waste PET Bottle Flakes Washing Line
PET Bottle Recycling Plant Description
PET Bottle Recycling Plant is mainly used for crushing, washing, palletizing of PET bottles to realize auto separation for caps and labels: belt conveyer, crusher, steam washer, scrubbing washing unit, rinsing and precipitation washing unit, centrifugal dewatering unit, hot air flow drying unit, and electric control cabinet. Which capability arrange 500-3000KG/h.
PET Bottle Recycling Plant shining points:
1. Our Machine raw material adopt stainless steel 304.
2. Our PET bottle crusher equiped with the force feeding pressing device,
when the pet bottle us non - pressed, having this device will effectively avoid the
bottle jump inside the chamber of the crusher, at the mean time, this device can
enhance capacity to some degree.
3. High speed friction washer is new type. since the blade of the friction washer is easy to get blunt, so the new type friction washer blade can be dismantled and be changed.
PET Bottle Recycling Plant Machine Advantage:
1. Automotive line for recycling the PET bottles and other waste plastic profile, except the film.
2. With a continous work with the next step pelletizing machine, so that the cleaning flakes would be made into pellets
PET Bottle Recycling Plant Parameter
| No. |
Capacity (kg/h) |
Total power (Kw) |
Water consumption (M3/H) |
Workers (Person) |
| 1 | 300-500 | 70-120 | 3-4 | 3-6 |
| 2 | 1000-1500 | 130-250 | 5-8 | 6-10 |
| 3 | 2000-3000 | 250-420 | 5-10 | 8-12 |
| 4 | 5000-6000 | 520-850 | 10-12 | 8-15 |
| Above date is only for reference. We design pet bottle recycling line according to different raw material and above date will be different. | ||||
FAQ:
Q: What’s the grade for PET Bottle Flake which is recycled by your machine line?
A: Test report
Q: How often are the Crusher blades sharpened?
A: After continuous working at 30-40hours, the blades have to be sharpened
Q: How about the rate for removing the labels by Label remover?
A: Compressed bottle: more than 95%
Un-compressed bottle: more than 98%
Q:What’s the temperature of steam washer ?
A: Usually 80-90℃ ( If the temperature is over 100℃, the Flake will be roll.so the best temperature is 80-90℃)
Q: What’s the moisture after Horizontal dewatering machine?
A: About 1.8%.
Q: What’s the price of the complete machine line?
A: Depends on the capacity you need and also the device
If you want to know more information, welcome to contact us freely.
