Powerful PET Bottle Washing Machine , Waste Plastic Bottle Recycling Plant

Powerful PET Bottle Washing Machine , Waste Plastic Bottle Recycling Plant
Powerful PET Bottle Washing Machine , Waste Plastic Bottle Recycling Plant

Large Image :  Powerful PET Bottle Washing Machine , Waste Plastic Bottle Recycling Plant

Product Details:

Place of Origin: CHINA
Brand Name: STPLAS
Certification: CE
Model Number: 500kg/h

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact Us
Packaging Details: film packing suit for shipping
Delivery Time: 30-80days
Payment Terms: T/T, L/C
Supply Ability: 10 lines/year
Detailed Product Description
Name: PET Bottle Washing Machine Advantage: Powerful
Workshop(M*M*M): 42 (L)×10(W)×6(H) Ancillary Staff: 6 Persons
Installation Power: 156KW Water Consumption: 2 Ton/h
High Light:

pet bottle recycling line

,

pet plastic recycling machine

Powerful PET Bottle Washing Machine , Waste Plastic Bottle Recycling Plant



PET Bottle Washing Machine Description:



-This pet flake hot washer machine is used for mixing waste HDPE PET bottle scrap.

-The material will stay at hot washer for 8-10 minutes, and the hot washer steamer feed with chemical (caustic Soda/NaOH/or other detergent) , and the temperature should be keep 90-95℃.

-this system can be used Gas, electric and diesel to steam the hot washer according the customer requirement.

-Rotor shaft inside hot washer is made by stainless steel.



Input capacity 500kg/h 1000 kg/h 2000 kg/h
Workshop(M*M*M) 42 (L)×10(W)×6(H) 55(L)×15(W)×6(H) 70(L)×18(W)×6(H)
Ancillary staff 6Persons 8 Persons 12 Persons
Installation power 156KW 307KW 420KW
Water Consumption: 2Ton/h 3.5Ton/h 5 Ton/h
Final product

Moisture: max 1%

Bulk density: 0.3G/CM3

Particle size: 14-18mm

Metal content: max.20ppm

Floatable contamination: less than 200ppm

Total impurity: 320ppm





PET Bottle Washing Machine shining points:



1. Our Machine raw material adopt stainless steel 304.

2. Our PET bottle crusher equiped with the force feeding pressing device,

when the pet bottle us non - pressed, having this device will effectively avoid the

bottle jump inside the chamber of the crusher, at the mean time, this device can

enhance capacity to some degree.

3. Dewatering machine is also new type: the rotary speed can reach to 2200rpm. While the old model can be 1200. the new type can dry the pet flakes to 2% moisture content.

no need the air pipe dryer and blower, and at the same time,save power for you.





PET Bottle Washing Machine Features:

  • Low noise , Reasonable design
  • The part with water are all stainless steel 304
  • The wringing machine is used for the dewatering part, which has large output and high efficiency. It does not need hot air drying, which greatly reduces electricity consumption.



working principle:

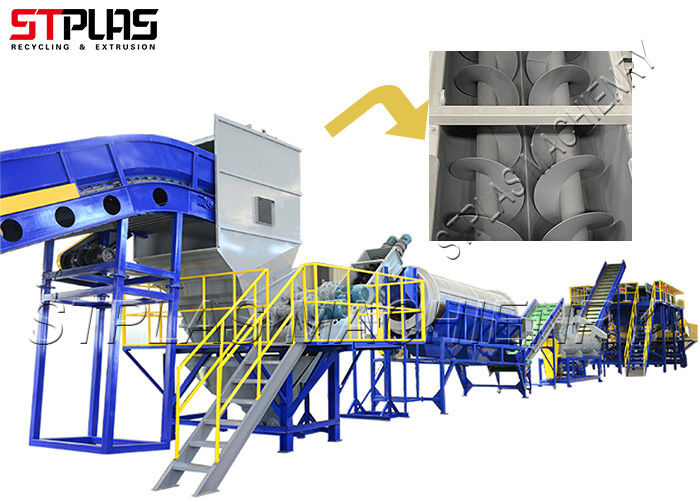

recycled PET plastic bottles, firstly to remove the labels for label remover machine, and then go though selecting table to select different color bottles( for example, green bottles,bule bottles or other PC ,HDPE bottles etc. then go to crusher to crush , when the material come out ,then go to floating washer , to separate PET bottles with PP labels ,cups. After separating, it will go to high degree temperature hot washer boil to hot washing, then go to cold floating washer again (to remove the detergent from hot washer, then dewatering ,package.

For the different capacity ,high level bottle flakes, we can design the new plan as your requirement.
