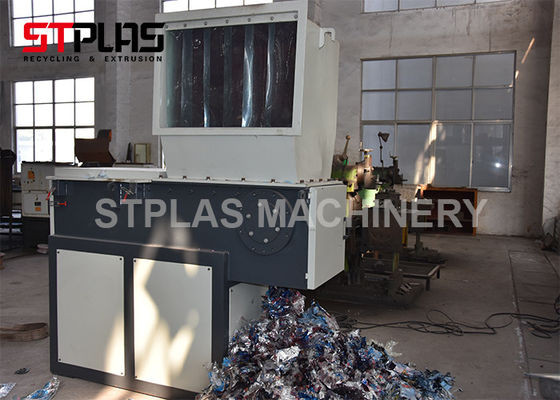

500 Kg/H Plastic Shredder Machine For Woven Bags / Cement Bags / Plastic Bags

500 Kg/H Plastic Shredder Machine For Woven Bags / Cement Bags / Plastic Bags
500 Kg/H Plastic Shredder Machine For Woven Bags / Cement Bags / Plastic Bags

Large Image :  500 Kg/H Plastic Shredder Machine For Woven Bags / Cement Bags / Plastic Bags

Product Details:
Place of Origin: JIANGSU,CHINA
Brand Name: STPLAS
Certification: CE
Model Number: ST1-800
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: contact us
Packaging Details: Plywood package suit for shipping.
Delivery Time: 30days-60days after received the deposit
Payment Terms: T/T
Supply Ability: 30 set/ month
Contact Now
Detailed Product Description
Motor Power: 22~90KW Blade Material: SKD-II Or D-2
Shaft: Single /double Shredder Voltage: 380V/50HZ/3 PHASE
Application: Recycled Industry Usage:: Rubber Shredding Waste Plastic Shredding
Material: Wood, PE, Metal, Cloth,tire,wood Pallet,pipe Specification: VH Plastic Shredder Machine
High Light:

cardboard shredder

,

wood shredder machine

500 kg/h woven bags/cement bags/plastic bags single shaft shredder machine

Product Description

One/Single shaft shredder commonly used to process materials into different sizes for separation and reduce the recycling cost of transport .but it primary use shredding plastic lump,plastic barrel,big plastic bottle ,plastic pipe,plastic pallet,wood pallet,woven bags,plastic bags,gallon drum,paper core,paper box etc.

1. Rotor shaft "V" shape design,Use SKD-11 and D-2 material,Fixed blade by screw,no welding. it will more easy for shredding and maintenance for worker
2. Use the top branded BONENG gear box

3. Use the vibration-proof system to reduce the gear box loading protect the gear box
4.Rotor Shaft Automatic Forward and reversal,control by Siemens PLC



Model ST-800 ST-1200
Capacity(T/hour) 0.8-2 2~4
Specification of feeding(mm) ≤800 ≤1200
Specification of discharging(mm) ≤50x50 ≤60x60
Main Motor(Kw) 37 45x2
Discharging Motor (Kw) 3 4
Cutter rotate speed(r/min) 16 10
Screener rotate speed 6 4


Plastic shredder Features:


1. With good shaft structure design, stable running, durable use.
2. PLC control system, overload protection, more safe to operate.
3. Blades are fixed on the shaft by screw, convenient and easy to change
4. Every rotary blades has four cutting edges, it can be rotated by 180 degree continue to use if is worn.



500 Kg/H Plastic Shredder Machine For Woven Bags / Cement Bags / Plastic Bags 0

500 Kg/H Plastic Shredder Machine For Woven Bags / Cement Bags / Plastic Bags 1



500 Kg/H Plastic Shredder Machine For Woven Bags / Cement Bags / Plastic Bags 2
