High Speed Plastic Washing Recycling Machine For Empty Shampoo Bottles

recycle empty used shampoo bottles machine for plastic HDPE bottle recycling

PE, PP bottle Washing Line is also called PE, PP crushing, washing, dewatering and drying line. It is used to recycle the HDPE milk bottle, detergent bottle, shampoo bottle and etc . We can supply production line with capacity from 500kg/h to 3000kg/h.

Technical parameter for 500kg/h production line HDPE recycling:

More process of plastic bottle washing system:

• Pre-washing tumble machine

Automatically separate out sand, rocks, metals, small garbage, and some bottle caps, bottle rings etc.

• Sorting Table

Pick out the steel wire and PVC material and colorful bottles, film or other big impurity.

• Metal Detector (optional)

Detecting and removing ferrous and non-ferrous metals automatically.

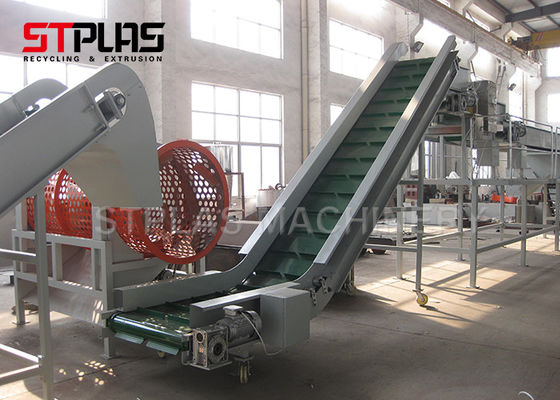

• Belt conveyor

For feeding the plastic bottles to crusher

• Crusher

Cursher with water, waste plastic crushing to different size, the screen size will depend the machine output.

• Screw Loader

Conveyor the flakes scraps into the next step.

• Floating washer

Cleaning plastic scraps to remove chemicals and separating out rest labels and caps

• Hot washer

Connect with the steam boiler, the impurity cleaned by hot water, also add caustic soda and some detergent in the water to remove the oil and glue from the plastic scraps.

• High speed friction washer

The machine is mainly used to clean the dirty on the surface of the plastic scraps.

• Dewatering machine

To dry the plastic scraps to get final good quality flakes.

• Storage hopper

To pack the final scraps to one big package.

Main Technical Parameter of HDPE recycling machine plant:

After material to crush, wash, dry to flakes, it also can be granuled, to make pellets to sale.
