Product Details:
Payment & Shipping Terms:
|
Name: | Plastic Pelletizing Equipment | Motor Brand: | Siemens Or As Your Requirement |
---|---|---|---|
Screw: | Special For PVC Powder | Compactor: | With Cutter |
Pelletizer: | Cutter With Water | Filter: | Double Column Double Station Or As Requirement |
Capacity: | 80-1000kg/h | Warranty: | One Year For Free And Lifetime Maintenance |
High Light: | plastic pelletizing machine,plastic pelletizer |

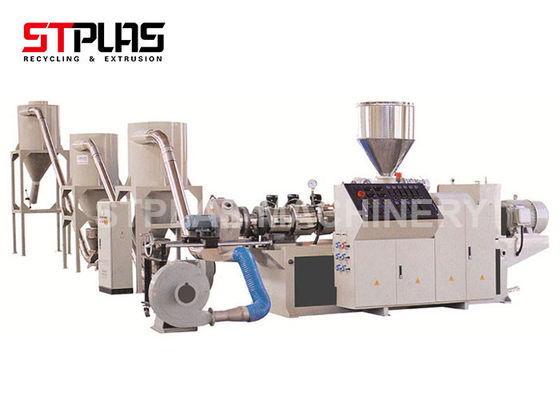

PVC conical double screw pelletizing machine with hot cutting SJSZ80/156
SJSZ series PVC pelletizing machine mainly used in hard PVC pelletizing technology, adopt conical double screw extruder .
PVC hot cutting usage:
For plastics with relatively cold solid properties, (for example, HDPE,PVC) and Filled modified plastic (Such as calcium filling) no water pelletizer, the pellets are round cake, Non-porous, and can be used directly without drying.
Features:
Extruder hosts:
Low-shear, high-mixed screw form ensures efficient and stable operation of granulation production
Uniform dosing system ensures more even and efficient master batch material configuration
Cutting device:
Matching precision knives to ensure a smooth cut surface
Frequency control, more suitable for different granulation process speed requirements.
Pelletizing die head molds:
Made of high-quality mold steel, hard-ironed and durable
Well-distributed material flow path ensures uniform and efficient extrusion of pellets without affecting each other.
Cooling device:
Unique 3D cooling system for better cooling
Powerful fan combined with new cooling system ensures the quality and efficiency of pellets
Main technical Parameter:
Model | Screw Diameter (mm) | Capacity (kg/h) | Main Motor Power(kw) | Length (m) |
SJSZ51 | 51/105 | 120 | 18.5 | 12 |
SJSZ65 | 65/132 | 200 | 37 | 14 |
SJSZ80 | 80/156 | 350 | 55 | 16 |
SJSZ92 | 92/188 | 600 | 90 | 18 |

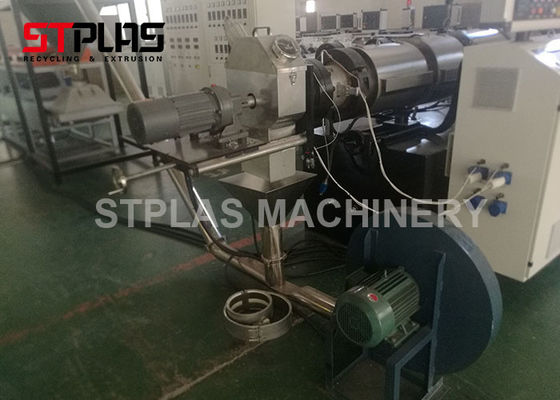

More Photos:
We also very professional of plastic PP PE pelletizing line, PP PE PET washing line, plastic shredder , plastic crusher etc.
If you want to know more informations ,contact with us freely.
Contact Person: Shadow Fan
Tel: 0086 139 1360 8802
