Product Details:
Payment & Shipping Terms:
|
Item: | PVC Hot Cut Granulation Production Line | Motor Brand: | Siemens Or As Your Requirement |
---|---|---|---|
Screw: | Special For PVC Powder | Compactor: | With Cutter |
Pelletizer: | Cutter With Water | Filter: | Double Column Double Station Or As Requirement |
Capacity: | 80-1000kg/h | Warranty: | One Year For Free And Lifetime Maintenance |
High Light: | plastic pelletizer,plastic film recycling machine |

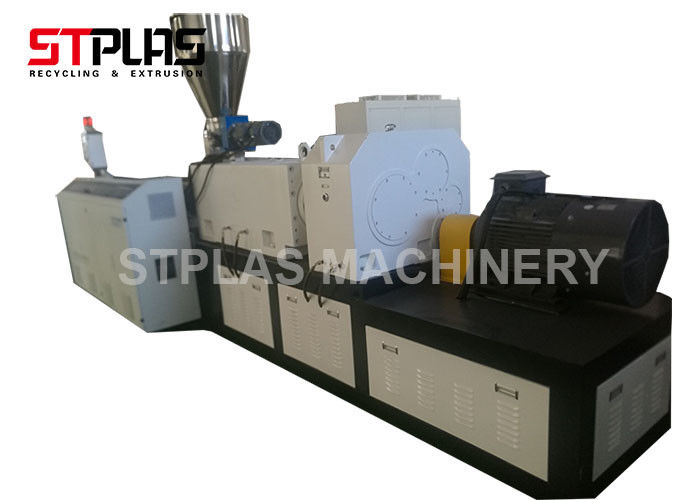

PVC hot cut granulation production line in plastic special screw extruder
PVC hot cut granulation production line main usage: For waterless granulation of plastics with relatively cold solid properties (eg HDPE, PVC) and filled modified plastics (eg calcium filled), the pellets are round cake-like, non-porous, and can be directly input without drying.
Futures:
Main technical Parameter:
Model | SJSZ51 | SJSZ65 | SJSZ80 | SJSZ92 |
Screw Dismeter(mm) | 51-105 | 65-132 | 80-156 | 92-188 |
Granules size (mm) | 3-10 | 3-10 | 3-10 | 3-10 |
Main motor power(KW) | 30 | 37 | 55 | 110 |
Output(kg/h) | 100-120 | 220-260 | 320-450 | 650-800 |
More Photos:
We also can supply plastic Mixer machine
If you want to know more informations ,contact with us freely.
