Product Details:
Payment & Shipping Terms:
|
| Blade: | SKD-II Or As Customer Requirement | Motor: | 7.5-110KW |
|---|---|---|---|
| Shaft Design: | Double | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Warranty: | 1 Year For Free,Lifetime Maintenance | Package: | Plywood Or Film |
| High Light: | cardboard shredder,double shaft shredder |
||

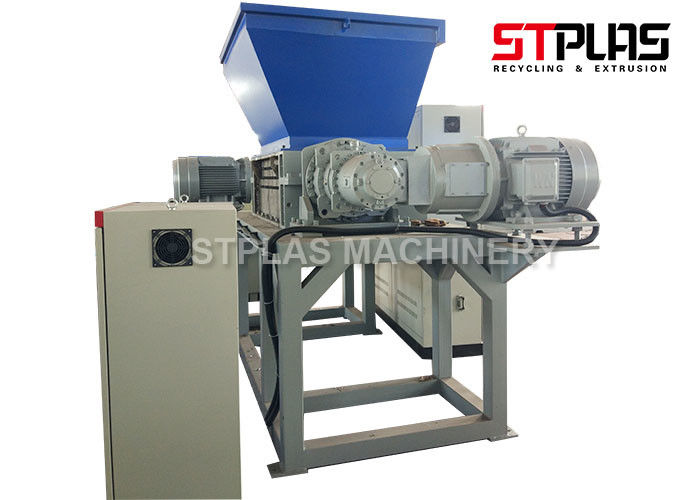

Plastic film shredder double roller shredder machine
This shredder is specially for waste PP / PE film, snake woven bags, tons of bags, waste paper and design, production can be according to the size of the models to 500-6000KG per hour, material size is about 40-100MM.
Main Features
- large feeding mouth, easy to feed;
- Automatic continuous crushing, high capacity;
- The surface hardening treatment can be used to prolong the service life of the cutter roller surface;
- Blade standardized design, so that the blade replacement fast and convenient, reduce the using life.
-The screen size of a standard design, optional, easy to change.
Main Technical Parameter of double axis plastic shredder plant :
| Model | Power(KW) | Number of revolving knife |
thickness of knife (mm) |
Diameter of knife (mm) |
Number of knife |
Dimension of crushing chamber (mm) |
Output (kg/h) |
| S2-600 | 11 | 12 | 50 | 280 | 5 | 600*550 | 300-800 |
| S2-600 | 15 | 12 | 50 | 280 | 5 | 600*550 | 300-800 |
| S2-800 | 22 | 16 | 50 | 300 | 5 | 800*600 | 500-1500 |
| S2-800 | 37 | 16 | 50 | 300 | 5 | 800*600 | 500-1500 |
| S2-1000 | 2*30 | 20 | 50 | 350 | 5 | 1000*700 | 1000-2000 |
| S2-1200 | 2*30 | 24 | 50 | 400 | 5 | 1200*800 | 1500-2500 |
| S2-1600 | 2*37 | 22 | 70 | 450 | 5 | 1600*900 |
2000-3000 |
More Photos:
If you want to know more information about single shaft shredder,double shaft shredder,four shaft shredder,welcome to contact with us.
