Gas Steam Hot Water Washing Machine For PET Flake Washing Line 500-1000kg/h

large.img.alt
large.img.alt

Large Image :  Gas Steam Hot Water Washing Machine For PET Flake Washing Line 500-1000kg/h

Product Details:
Place of Origin: CHINA
Brand Name: STPLAS
Certification: CE SGS
Model Number: STPLAS 03
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact Us
Packaging Details: film packing suit for shipping
Delivery Time: 30-80days
Payment Terms: D/P, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 lines/year
Detailed Product Description
Material: 304SS With Water Crusher Blade: SKD-II/D2 Or As Your Requirement
Motor: Siemens Or China Famous Brand Friction Washer Machine: Wash Dirty Flakes
Hot Washer Machine: Pet Flake Washing Line Warranty: One Year For Free,Lifetime Maintenance
Capacity: 300-2000kg/h Hummity: Less Than 1%
High Light:

plastic bottle recycling machine

,

plastic bottle recycling equipment



Gas Steam hot washer machine for pet flake washing line





STPLAS MACHINERY new steam washer has a special design for discharging the label and bottle cap which float on the water.This new design improves the quality of the clean flakes.



Description:



- This pet flake hot washer machine is used for mixing waste HDPE PET bottle scrap.

- The material will stay at hot washer for 8-10 minutes, and the hot washer steamer feed with chemical (caustic Soda/NaOH/or other detergent) , and the temperature should be keep 90-95℃.

- this system can be used Gas, electric and diesel to steam the hot washer according the customer requirement.

- Rotor shaft inside hot washer is made by stainless steel.



Main technical parameter for 1000kg/h hot washer:



1 Main motor power 7.5KW
2 Rotating Speed 17r/min
3 Diameter of barrel 1700mm
4 Depth 2250mm
5 Volum of barrel 4.5m3



We have other size of hot washer if you needed. Different models.

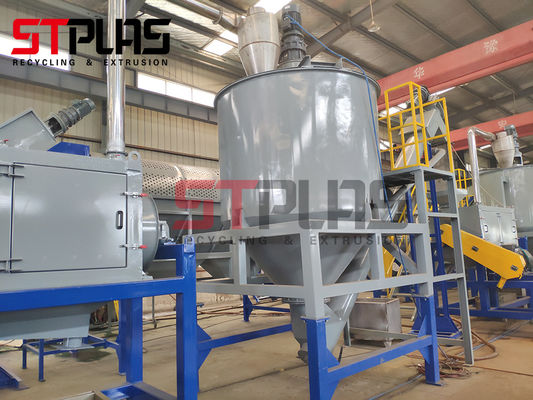

More Photos of Gas steam hot washer:

The Hot Washer will use boiler to supply the steam, that will be more stable, the quality of the PET flakes will be more better.



Gas Steam Hot Water Washing Machine For PET Flake Washing Line 500-1000kg/h 0



The complete line of PET flake washing line 1000kg/h/2000kg/h/3000kg/h/5000kg/h,min capacity is 500kg/h, 1000kg/h will be more economical.



Working Flow:

Belt conveyor  → Crusher  Screw friction washer  Floating washer → Screw friction washer → Floating washer → Screw conveyor High speed friction machine Screw conveyor Two direction horizontal separating screw Squeezer machine* 2 Storage hopper Control cabinet



Gas Steam Hot Water Washing Machine For PET Flake Washing Line 500-1000kg/h 1



Gas Steam Hot Water Washing Machine For PET Flake Washing Line 500-1000kg/h 2



PET Bottle recycling line

Raw material: Baled PET bottles/ Round drinking water bottles

Final flakes: 10/12/14mm PET flakes



Gas Steam Hot Water Washing Machine For PET Flake Washing Line 500-1000kg/h 3



We also can do the complete line of PP PE washing line, PET washing line ,PP PE PET pelletizing line, plastic agglomerator, plastic film squeezing machine, plastic crusher /shredder.



If you want to know more information ,contact with us freely.
