Product Details:
Payment & Shipping Terms:
|
| Blade: | SKD-II Or As Customer Requirement | Motor: | 7.5-110KW |
|---|---|---|---|
| Shaft Design: | Single/double | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Warranty: | 1 Year For Free,Lifetime Maintenance | Package: | Plywood Or Film |
| High Light: | cardboard shredder,wood shredder machine |
||

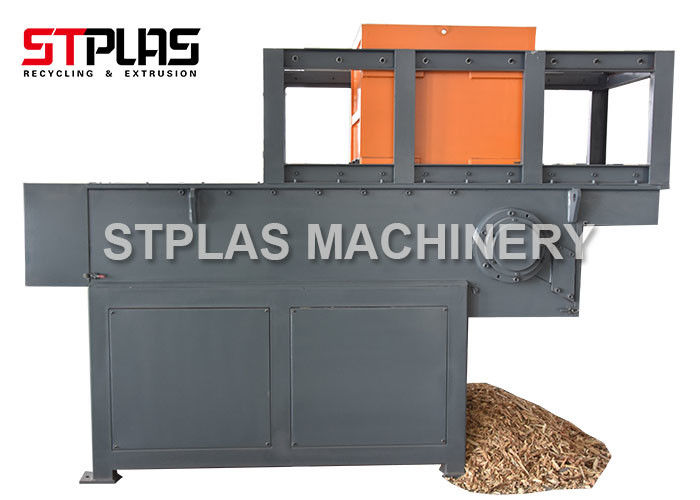

Wood chipper shredder to crush waste wood for single shaft
Which part is suit for our wood shredder :
Wood chipper shredder is though cutting shredding to make the whole wood, wood block, Old furniture etc to small pieces, High processing power and high capacity. Widely used in wood, Timber trim, Wooden board, Branch of the tree, waste appliance housings etc.
MainTechnical Parameter of single shaft shredder:
| Model | ST1-600 | ST1-800 | ST1-1000 | ST1-1200 |
| Push Power(kw) | 1.5 | 2.2 | 2.2 | 5.5 |
|
Mainmotor power (kw) |
18.5 | 37 | 37 | 55 |
| Rotary blade | 28 | 38 | 48 | 58 |
| Stationary blade | 2 | 2 | 4 | 4 |
| Shaft diameter(mm) | 220 | 400 | 400 | 400 |
| Rotate speed(r/min) | 90 | 85 | 80 | 75 |
More Photos:
Final Wood chips:
STPLAS SHIPPMENT SERVICE:
If you want to know more information about single axis shredder,double axis shredder,four axis shredder,welcome to contact with us.
