Product Details:
Payment & Shipping Terms:
|
| Material: | 304SS | Motor Brand: | Siemens Or As Your Requirement |
|---|---|---|---|
| Screw: | Special For Film/bags/fiber | Compactor: | With Cutter |
| Pelletizer: | Vertical Water Ring Pelletizing Plastic Extrusion Granulator | Filter: | Double Column Double Station Or As Requirement |
| Capacity: | 80-1000kg/h | Warranty: | One Year For Free And Lifetime Maintenance |
| High Light: | plastic pelletizing machine,plastic pelletizer |
||

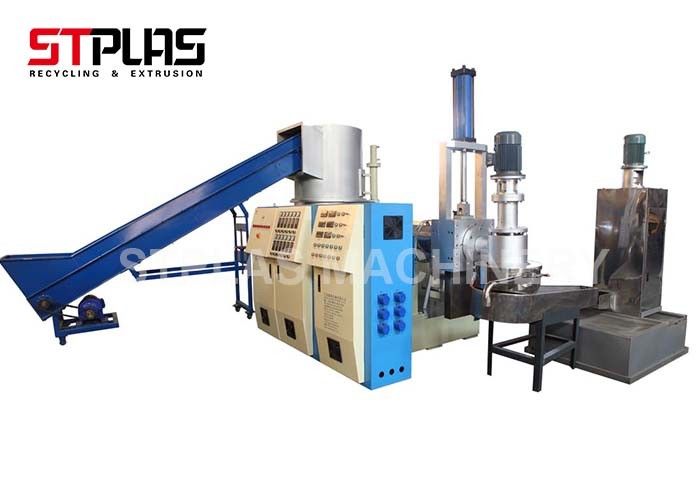

Vertical water ring pelletizing plastic extrusion granulator
This unit is suit for one stage or two stage pelletizer, cutting part is water ring cutter,die head,Blades constitute.
Traditional waste plastic pelletizing recycling cutting technology is extruding melt zipper cooling then cutting. In contrast, the directing cutting when it melt with water, it will be cutted, so the melt cutting has advantages than Solid granulation.
Vertical water ring pelletizing plastic extrusion granulation unit is ingeniously matched by high speed mixing granulator and single screw extruder.
Agglomerator extruder vertical water ring pelletizing can according different raw material to choose different diameter screw or gas exhaust. Low melting temperature, effectively reducing the re-degradation of the material.
Main Technical parameter of plastic extrusion granulator:
| Model | ST-SJ85 | ST-SJ100 | ST-SJ130 | ST-SJ160 | ST-SJ180 |
| Screw Diameter(mm) | 85 | 100 | 130 | 160 | 180 |
| L/D | 25-42 | 25-42 | 25-33 | 25-33 | 25-33 |
| Capacity(kg/h) | 120-180 | 250-350 | 400-500 | 550-700 | 800-1000 |
Our Products of water ring cutter pelletizing machine:
If you want to know more information ,contact with us freely.
