Payment & Shipping Terms:
|Application:||PET Bottle Washing Machine||Voltage:||380v Or According To Customer's Request|
|Production Capacity:||500-5000kg/h||Material Processed:||Crushing-washing-drying|
|Warranty:||12 Months||After-sales Service Provided::||Engineers Available To Service Machinery Overseas|
pet bottle recycling line,
pet plastic recycling machine

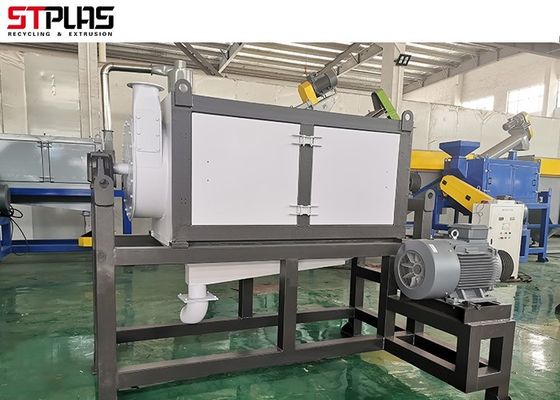

OEM PET Plastic Bottle Washing Recycling Line Plastic Scrap Recycling Machine
PET bottle scraps washing line, fully automatic production line, is a special equipment for crushing and cleaning PET plastics such as waste mineral water bottles. Features: exquisite appearance, low energy consumption, high output, practical and reliable. The new rinsing device can be washed as it is broken, which greatly improves production efficiency and cleans the material. Recycling of PET plastic generally refers to the use of PET bottles, after proper processing and processing, to reduce the material into PET for remanufactured products, especially as a larger amount of chemical fiber textile raw materials. Because PET bottles are widely used in beverages and cooking oils, and can only be used once due to hygiene reasons, the equipment for recycling PET bottles has attracted attention. Generally, the bottle caps and bottle mops separated from PET bottles are PE, and they can also be collected and recycled.
Main Technical parameter of 1000kg/h PET washing machine:
Number of rotating blades: 6
Number of fixed blades: 4
|Contacts with wet flakes is made of Stainless Steel SUS304|
Blade material: SKD-11
Hopper open: hydraulic
For about 8-10mins
Main Parts of PET Scrap Recycling Machine:
Crusher: For crushing the material into smaller size.
This machine is specially designed for PET bottles' crushing. It has the characteristics of smooth feeding, stable output, low energy consumption, low vibration and noise value, strong structure, low maintenance cost and long service life. At the same time, wet pulverization, in addition to using the impact of water to enhance the cleaning effect of PET chips, also reduces frictional heat due to the cooling effect of water, reduces PET debris, and prolongs tool life.
The parts which contacts with the wet flakes is made of stainless steel SUS304.Steam boiler (will be provided by buyer) provide hot steam to the steam washer and heat the water to 90-95℃, mix caustic soda or other detergent into the water carefully to clean the flakes.The flakes will stay in the steam washer about 8-10 mins.
To save your time and improve the quality of our quotes, please provide the following information:
1) Material material and material status, it is best to provide a true picture of the recycled material;
2) Production line required.
3) Whether the cleaning line is used domestically or exported, if it is exported, which country is exported.
Contact Person: Shadow Fan
Tel: 0086 139 1360 8802
