Single Axis Plastic Waste Shredding Machine With SKD-II Blade For Recycling

large.img.alt
large.img.alt

Large Image :  Single Axis Plastic Waste Shredding Machine With SKD-II Blade For Recycling

Product Details:
Place of Origin: JIANGSU,CHINA
Brand Name: STPLAS
Certification: CE SGS
Model Number: ST1-600/800/1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 9,600-128,000USD/SET
Packaging Details: film or Plywood package suit for shipping.
Delivery Time: 30-60days
Supply Ability: 30sets/month
Detailed Product Description
Blade: SKD-II Or As Customer Requirement Motor: 7.5-110KW
Shaft Design: Single/double After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: 1 Year For Free,Lifetime Maintenance Package: Plywood Or Film
High Light:

cardboard shredder

,

double shaft shredder

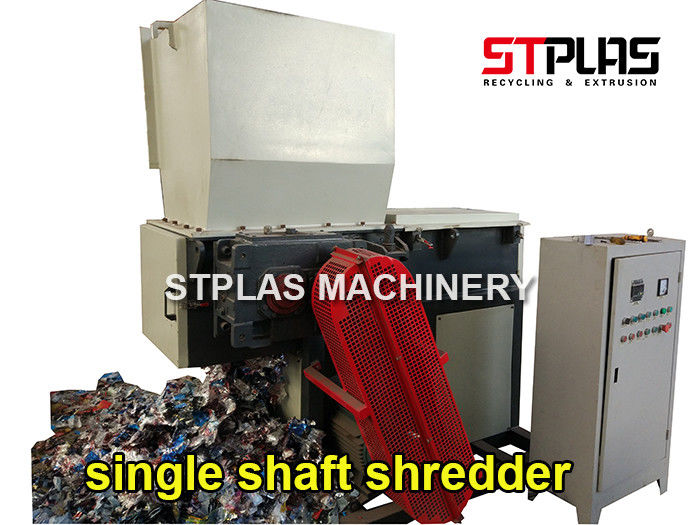

Single axis shredder machine for plastic recycle SKD-II blade

Our single axis shredders use unique, square knives that are bolted securely onto a large, closed rotor in a staggered array. As the square rotor knives are mounted with the corners protruding, jagged-teeth knives are mounted within the cutting chamber that act as the stationary knives. Unlike granulators that spin at high speeds, single axis shredders are relatively quiet, slow cutting machines that spin between 60-100 rotations per minute. As material is fed into the shredder, a hydraulic assisted drawer pushes the material against the rotor where it will be continuously cut until it reaches the desired size as designated by a screen filter that is fitted beneath the cutting chamber; The material will continue to be shredded until it is small enough to fall through this screen filter.

product description:

Single axis shredder is driven by a planetary gear reducer. The blades are made of high-strength alloy steel. They have strong wear resistance and high strength. The shafts run differentially. There are tearing, squeezing and biting. Features. Professionally designed for a variety of household waste materials, it is suitable for smashing all kinds of domestic wastes, such as: used clothes, used shoes, used quilts, used household articles, packaging bags, used wood, used plastics, food waste, and medical waste. The output can be professionally designed according to the requirements of the guests. It has the advantages of uniform discharge, controllable size, large output, low noise and so on.

working principle:

The material enters the shredder box body through the feeding system. The box body carries the shredding blade. The material pushing box pushes the material to the vicinity of the blade. The material is shredded into pieces by tearing, squeezing and shearing by the shredding blade. Small pieces of material are discharged from the screen holes.

MainTechnical Parameter of single shaft shredder:


ModelST1-600ST1-800ST1-1000ST1-1200
Push Power(kw)1.52.22.25.5

Mainmotor power
(kw)

18.5373755
Rotary blade28384858
Stationary blade2244
Shaft diameter(mm)220400400400
Rotate speed(r/min)90858075


Raw material:

♣ A variety of containers: plastic beverage cans, plastic barrels, drums, crates, packaging barrels,PP bottle,PE pet bottle.
♣ Waste appliances: TV, washing machine, refrigerator shell, printer, keyboard, waster Microwave oven,waster computer,waster mouse,Circuit board.
♣ Pipe: large pipe, pipe fittings, PE pipe,PVC tube.
♣ Wood: wooden pallets, plastic pallets, forklift pallets,Used furniture.
♣ Rubber:waster wire, tires tires, truck tires.
♣ Scrap metal: car shell, aluminum, scrap aluminum, engine shell, Lead plate,waster steel,waster iron.
♣ Garbage:Food waste,animal carcass, medical waste, garden garbage,Fruit trash,Vegetable trash,glass.


More Photos:

Single Axis Plastic Waste Shredding Machine With SKD-II Blade For Recycling 0

If you want to know more information about single axis shredder,double axis shredder,four axis shredder,welcome to contact with us.
