Product Details:
Payment & Shipping Terms:
|
Material: | 304SS | Motor Brand: | Siemens Or As Your Requirement |
---|---|---|---|
Screw: | Special For Film/bags/fiber | Compactor: | With Cutter |
Pelletizer: | Cutter With Water | Filter: | Double Column Double Station Or As Requirement |
Capacity: | 80-1000kg/h | Warranty: | One Year For Free And Lifetime Maintenance |
High Light: | plastic pelletizing machine,plastic pelletizer |
Sieve Shaker/Vibrating Screen Machine for plastic recycling pellet machine
Product Features:
The product is stable and reliable, high screening accuracy, large processing capacity, simple structure, low energy consumption, low noise, long screen mesh life, good sealing, no dust spill, easy maintenance, fully enclosed structure, automatic Dumping can be used for automated operations in assembly line production.
Product Use:
The screening and grading of powdery and granular materials. The product is mainly applicable to the drying and sorting of plastic particles.
The rotary vibrating screen is a high-precision plastic particle fine powder screening machine with low noise and high efficiency. It takes 3-5 minutes to quickly change the screen. It has a fully enclosed structure and is suitable for screening and filtering particles, powder, mucus and other materials.
Main Technical Parameter:
Model | ST-300 |
Motor Power | 0.2KW*2 |
The Diameter of mesh | 3mm |
Capacity of water tank | 500L |
Material | Stainless steel 304 |
Working Principle:
The horizontal vibration motor is used as the excitation source. The lower ends of the motor are equipped with eccentric weights. The phase angle of the two ends can be adjusted to change the magnitude of the exciting vibration force. This motion is then transmitted to the screen surface for screening, which can change the material The trajectory of movement on the screen surface. So that the material can quickly pass through the screen to achieve the purpose of screening.

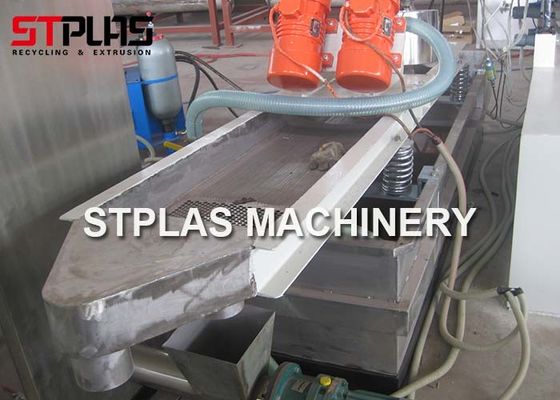

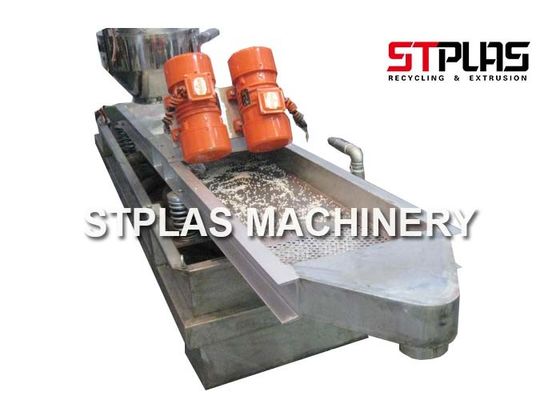

More Photos of Vibrating Screen Machine Sieve Shaker in recycling line:
The Vibrating screen machine usually used in water ring pellet machine, For dewatering pellets, and Separate inferior particles.
Different type of plastic recycling granulator machine:
Compactor film recycling pelletizer:
Single stage Main Technical Parameter:
Model | STML65 | STML85 | STML 100 | STML130 | STML160 |
Screw Dia. | 65 | 85 | 100 | 130 | 160 |
L/D Ratio | 33:1 | 33:1 | 33:1 | 33:1 | 33:1 |
Capacity (kg/h) | 60-100 | 150-250 | 200-350 | 400-500 | 500-600 |
Compactor Motor (kw) | 22 | 37 | 55 | 90 | 110 |
Extruder Main Motor (kw) | 37 | 55 | 90 | 132 | 185 |
Total Electric Power(kw) | 110 | 150 | 205 | 300 | 395 |
Double stage Main Technical Parameter:
Model | STML85/85 | STML 100/100 | STML130/130 | STML160/160 | STML180/200 |
Screw Dia. | 85 | 100 | 130 | 160 | |
L/D Ratio | 28:1/10:1 | 28:1/10:1 | 28:1/10:1 | 28:1/10:1 | 28:1/10:1 |
Capacity (kg/h) | 150-250 | 250-350 | 400-500 | 500-600 | 900-1100 |
Compactor Motor (kw) | 37 | 55 | 90 | 110 | 185 |
First Stage Motor (kw) | 55 | 90 | 132 | 185 | 250 |
Second Stage Motor (kw) | 22 | 30 | 45 | 55 | 75 |
Total Electric Power(kw) | 185 | 235 | 370 | 477 | 675 |
We also can do mother baby extruder plastic recycling granulator machine.
If you want to know more informations ,contact with us directly.
