PET Industrial Plastic Washing Machine / Safety Friction Washing Machine

PET Industrial Plastic Washing Machine / Safety Friction Washing Machine
PET Industrial Plastic Washing Machine / Safety Friction Washing Machine

Large Image :  PET Industrial Plastic Washing Machine / Safety Friction Washing Machine

Product Details:
Place of Origin: CHINA
Brand Name: STPLAS
Certification: CE
Model Number: PET recycling washing line
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: export packing For 3000kg/h PET Recycling Machine Hot PET Bottle Flakes Washing Line
Delivery Time: 30-80days
Payment Terms: T/T
Supply Ability: 5 Set/Sets per Month 3000kg/h PET Recycling Machine Hot PET Bottle Flakes Washing Line
Detailed Product Description
Name: PET Industrial Plastic Washing Machine Particle Size:: Particle Size: 14-18mm
Automatic Grade: Automatic Capacity:: Big Capacity
Raw Material:: PET Bottle Waste Warrenty:: 1 Year
TOTAL POWER: 400-460KW/H WATER CONSUMPTION: 6-8T/H
High Light:

pet recycling machine

,

pet bottle recycling line

HDPE Industrial Plastic Shredder Machine / Safety Friction Washing Machine



Industrial Plastic Washing Machine Application:



As recycling line for waste bottles,the machine is suitable for recycling all kinds of drinking milk bottles, Shampoo bottles, Shampoo bottles , Cosmetic bottles etc.



Industrial Plastic Washing Machine Feature


1.Humidity content:<2-5%
2.Capacity: 300-2000kg/h
3.PP/PE film washing recycling machine is used to crush, wash, dewater and dry plastic film.
4.Simple structure, easy operation, high capacity, low energy consumption, safety, reliability, etc..



We can design different recycling line for you according to your request:



  1. parallel bale opener can process the PET bottle packages from 100~600kg, more safety
  2. roller sorting machine: separate the impurities out from the PET bottles, such as metal, sand, etc.
  3. label removing system: use the gearshape blades to peel off the labels from the bottles body, removingratio>98%
  4. sorting table: detect metal automatically for crusher protection, and separate the PVC bottles out manually after a UV-detect device.
  5. Crusher: the blades are made of SKD-II, wearable and long life.
  6. Screw feeder: spiral convey and wash the PET flakes by the friction force in the special structure.
  7. friction washing machine: three friction force here for washing during the high speed rotating: rotor and flakes,steel sieve with flakes, flakes and flakes.
  8. Float washing tank: keep washing the materials continuously, subside the PET flakes, float and push out the labels,caps and rings.

Components



Plastic crusher

Function: size reduction of material into flakes

Washing tank

Function: cleaning flakes; density separation dirt from flakes

Hot Washing Tank

Function: with hot & chemical water washing to remove glue and greasy dirt from flakes

Dewatering Machine

Function: removal of moisture from flakes by high speed blade.


Industrial Plastic Shredder Machine Parameters


OVERVIEW OF PET BOTTLE LINE
MODEL
TOTAL POWER (KW/H)
WATER CONSUMPTION (T/H)
WORKERS (PERSON)
STPET1000
210-260
3-5
4-5
STPET2000
400-460
6-8
5-6

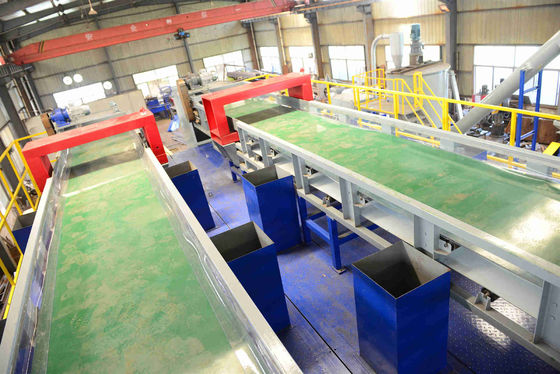

PET Industrial Plastic Washing Machine / Safety Friction Washing Machine 0
PET Industrial Plastic Washing Machine / Safety Friction Washing Machine 1
