Industrial Waste Plastic Washing Recycling Machine With Stainless Steel Tank

China Industrial Waste Plastic Washing Recycling Machine With Stainless Steel Tank supplier
Industrial Waste Plastic Washing Recycling Machine With Stainless Steel Tank supplier Industrial Waste Plastic Washing Recycling Machine With Stainless Steel Tank supplier Industrial Waste Plastic Washing Recycling Machine With Stainless Steel Tank supplier Industrial Waste Plastic Washing Recycling Machine With Stainless Steel Tank supplier

Large Image :  Industrial Waste Plastic Washing Recycling Machine With Stainless Steel Tank

Product Details:

Place of Origin: CHINA
Brand Name: STPLAS
Certification: CE
Model Number: 500kg/h

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact Us
Packaging Details: film packing suit for shipping
Delivery Time: 30-80days
Payment Terms: T/T, L/C
Supply Ability: 10 lines/year
Contact Now
Detailed Product Description
Name: Waste Plastic Washing Recycling Machine Input Capacity: 500kg/h
Workshop(M*M*M): 42 (L)×10(W)×6(H) Ancillary Staff: 6 Persons
Installation Power: 156KW Water Consumption: 2 Ton/h

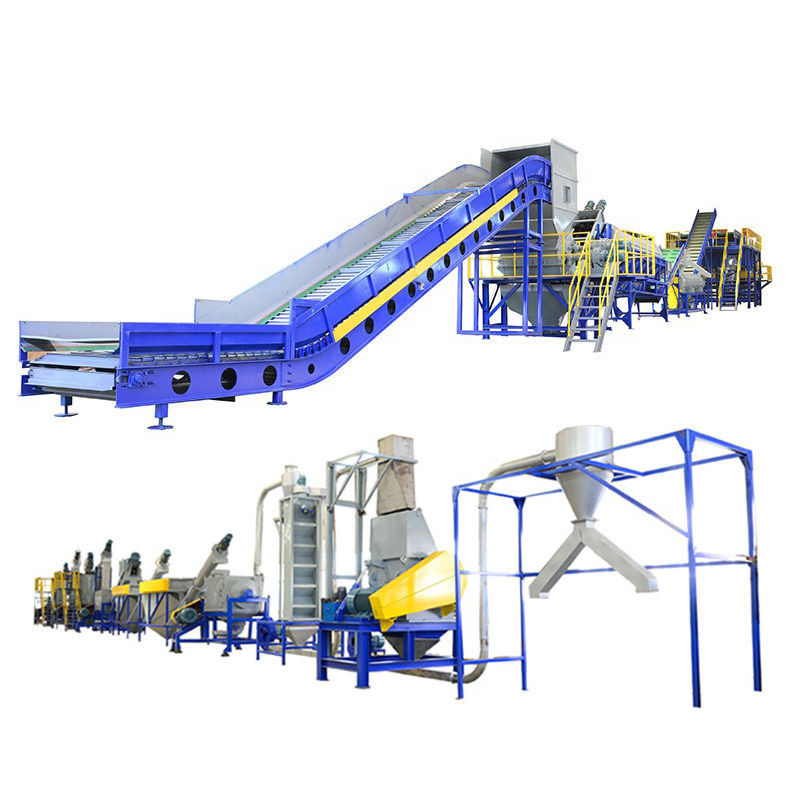

Industrial Waste Plastic Washing Recycling Machine With Stainless Steel Tank



Waste Plastic Washing Recycling Machine Description:



Plastic bottle rinsing tank is used in waste plastic bottle scrap recycle, to wash the waste bottle after crushing, the tank width is 1700mm, it has 4-5 rollers over the floating tank.

The Protective cover is over the floating washer.

One motor under the screw tank 1.5KW.



Suit for these kind bottles recycle:



PP PE milk bottles washer, PP PE cola bottles washer, PP PE shampoo bottle washer, PP PE oil barrel washer, PET drinking bottles washer.



STPLAS MACHINERY new steam washer has a special design for discharging the label and bottle cap which float on the water.This new design improves the quality of the clean flakes.



Waste Plastic Washing Recycling Machine Description:



-This pet flake hot washer machine is used for mixing waste HDPE PET bottle scrap.

-The material will stay at hot washer for 8-10 minutes, and the hot washer steamer feed with chemical (caustic Soda/NaOH/or other detergent) , and the temperature should be keep 90-95℃.

-this system can be used Gas, electric and diesel to steam the hot washer according the customer requirement.

-Rotor shaft inside hot washer is made by stainless steel.



Waste Plastic Washing Recycling Machine shining points:



1. Our Machine raw material adopt stainless steel 304.

2. Our PET bottle crusher equiped with the force feeding pressing device,

when the pet bottle us non - pressed, having this device will effectively avoid the

bottle jump inside the chamber of the crusher, at the mean time, this device can

enhance capacity to some degree.

3. High speed friction washer is new type. since the blade of the friction washer is easy to get blunt, so the new type friction washer blade can be dismantled and be changed.



Technical Parameter



No.

Capacity

(kg/h)

Total power

(Kw)

Water consumption

(M3/H)

Workers

(Person)

1 300-500 70-120 3-4 3-6
2 1000-1500 130-250 5-8 6-10
3 2000-3000 250-420 5-10 8-12
4 5000-6000 520-850 10-12 8-15
Above date is only for reference. We design pet bottle recycling line according to different raw material and above date will be different.



Final Product Quality:



Moisture: max 1%

Bulk density: 0.3G/CM3

Particle size: 10-18mm

Metal content: max.20ppm

Floatable contamination: less than 200ppm

Total impurity: 100-320ppm





FAQ:



Q: What’s the grade for PET Bottle Flake which is recycled by your machine line?

A: Test report

Q: How often are the Crusher blades sharpened?

A: After continuous working at 30-40hours, the blades have to be sharpened

Q: How about the rate for removing the labels by Label remover?

A: Compressed bottle: more than 95%

Un-compressed bottle: more than 98%

Q:What’s the temperature of steam washer ?

A: Usually 80-90℃ ( If the temperature is over 100℃, the Flake will be roll.so the best temperature is 80-90℃)

Q: What’s the moisture after Horizontal dewatering machine?

A: About 1.8%.

Q: What’s the price of the complete machine line?

A: Depends on the capacity you need and also the device

If you want to know more information, welcome to contact us freely.



Industrial Waste Plastic Washing Recycling Machine With Stainless Steel Tank

Description:



Plastic bottle rinsing tank is used in waste plastic bottle scrap recycle, to wash the waste bottle after crushing, the tank width is 1700mm, it has 4-5 rollers over the floating tank.

The Protective cover is over the floating washer.

One motor under the screw tank 1.5KW.
