Detailed Product Description
Name: Mother And Baby Extruder Motor Brand: Siemens Or As Your Requirement
Screw: Single Or Two Screw Compactor: With Cutter
Stage: Two Extruders Filter: Double Column Double Station Or As Requirement

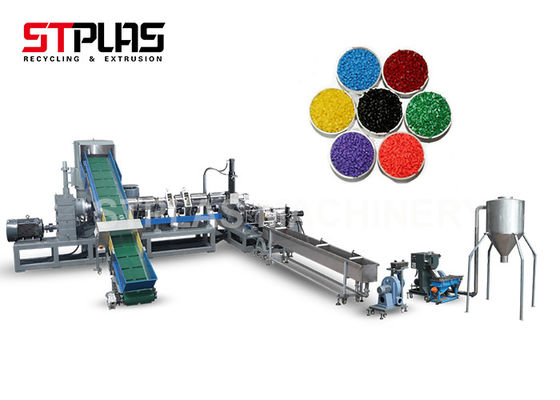

Mother and baby extruder plastic pelletizing machine

for PP PE material



Plastic Recycling



What would you do with an endless supply of plastic?



Let our research into recycling processes work toward a greener future. Contact us today to see what possiblities are in store for your tomorrow.



Streamlined Modern Process Flow

Saving Up to 40% on Energy Consumption

Refined Quality in Final Product

Individual Solutions Geared Specifically for Recycling Tasks



Mother and baby extruder plastic pelletizing machine for PP PE material



Compactor Feeding System



Our compactor feeding system is engineered to accept light weight and fluffy materials. The system can handle PP PE film, woven bags, bottle scraps, or other common scraps.



Our compactor feeding system with blade inside and when the machine running, inside of the blade with high speed running to cut small piece to easy to go to screw.



Main Extrusion System



Using a single screw extruder, co-rotating twin screw extruder or two stage extruder you can handle recycling a variety of thermal plastics. Defined solutions that meet each meaterials characterists.

During the extrusion process we will find unit value added savings during the material modification, filling, coloring and reinforcement stages.



Melt Filtration System (optional)

Melt filtration system can ensure the impurities will be filtered without leakage. This meets various flow character and processing requirements. To ensure the completion of high- productivity high-quality work.



Features:



1.Output :150-1000kg/h.



2. High-precision gearbox, high bearing capacity, smooth transmission, low noise.


3. New barrel and screw design, better melting, low-temperature melting and higher yields.


4. Screw and barrel could choose to be nitrogenized, resistant corrosion and wear.



5.Single screw extruder has the advantage of simple process, high output, stable operation, low cost, high bearing capacity.



Main Technical parameter of mother and baby extruder pelletizing machine:



Model Screw diameter(mm) L/D sub-extruder screw diameter L/D Capacity(kg/h) Total power(kw)
STSJ80 80 28-34 100 10:1 150-200 55/75KW,37KW
STSJ100 100 30-34 100 10:1 200-250 90kw,22kw
STSJ120 120 30-34 120 10:1 300-350 110kw,30kw
STSJ130 130 30-34 130 10:1 350-400 132kw,37kw
STSJ150 150 30-34 150 10:1 400-500 160kw,45kw



Inside of water ring cutter, 2-3 blades inside.



The mold body uses 40Cr forgings

The surface of the runner is nitrided and polished

Automatic compensation of blade and die face clearance

Unique rotating water flow to prevent cooling water splashing

Stainless steel is used in contact with the raw material



Mother and baby extruder plastic pelletizing machine for PP PE material



Final Products:



Application :
Widely used for regeneration and coloring pelletizing of PS,ABS,PC,POM,PA,PP,PE,PVC,EVA,LCP and other various plastic material .
