Single screw extruder plastic granulating machine for PP PE material

Single screw extruder plastic granulating machine for PP PE material

    • Single screw extruder plastic granulating machine for PP PE material
    • Single screw extruder plastic granulating machine for PP PE material
    • Single screw extruder plastic granulating machine for PP PE material
    • Single screw extruder plastic granulating machine for PP PE material
  • Single screw extruder plastic granulating machine for PP PE material

    Product Details:

    Place of Origin: JIANGSU,CHINA
    Brand Name: STPLAS
    Certification: CE
    Model Number: STPLAS 08

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Contact Us
    Packaging Details: film or plywood package suit for shipping
    Delivery Time: 30-60 days
    Supply Ability: 30 sets/month
    Contact Now
    Detailed Product Description
    Name: Single Screw Extruder Plastic Granulating Machine Screw Material: Bimetallic
    Feeder Material: Stainless Steel 304 Screw Design: Single Screw
    Exhaust Method: Exhaust According Your Raw Material Water Ring Cutter: Water Cooling Tank



    Single screw extruder plastic granulating machine

    for PP PE material





    Two stage single screw compactor granulator pelletizing machine with efficient exhaust, efficient filtration. Three in one unit is suit for film, woven bags granulator , PE films high efficient recycle, no need re-crush, high automatic, easy operation.



    Single screw extruder can be according your raw material to choose gas exhaust or not, cutting method, screen exchanger etc.



    Process Flow:



    • Film →
    • conveying feeding →
    • Metal detector(optional) →
    • Film agglomerating →
    • Degassing single screw extruder →
    • Hydraulic screen extruder →
    • sub extruder(optional) →
    • Hydraulic screen extruder(optional) →
    • Dewatering machine →
    • screen shaker →
    • Blowing system →
    • Storage hopper



    We also can do the noodle type pelletizing, force feeder, one stage pelletizing machine, all the specification and flow chart are according your requirement.



    Main technical Parameter of PP PE film plastic granulating machine:



    Model Screw diameter(mm) L/D sub-extruder screw diameter L/D Capacity(kg/h) Total power(kw)
    STSJ80 80 28-34 100 10:1 150-200 55/75KW,37KW
    STSJ100 100 30-34 100 10:1 200-250 90kw,22kw
    STSJ120 120 30-34 120 10:1 300-350 110kw,30kw
    STSJ130 130 30-34 130 10:1 350-400 132kw,37kw
    STSJ150 150 30-34 150 10:1 400-500 160kw,45kw

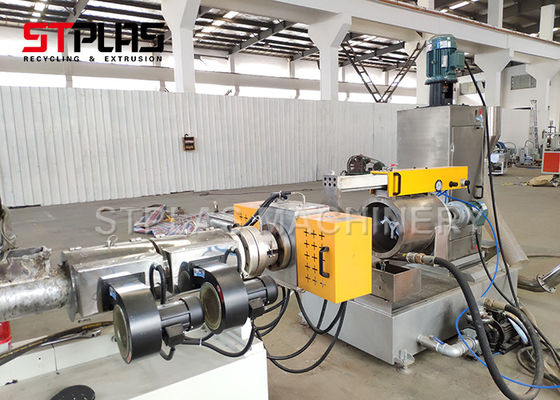

    Single screw extruder plastic granulating machine for PP PE material

    The entire pelletizing production line has a high automation, which is a fully automatic assembly line. One people add waste plastics in front, the other one connect the pellets to the finished product, and realize a direct transformation from waste plastics to finished pellets.



    STPLAS MACHINERY has our own R&D team to do plastic pelletizing system, we already have the technology for the extruder meet 1000kg/h.



    If the pelletizing system is 1000kg/h, the washing line should be 2000kg/h, because the pelletizing system must non-stop work, it is working 24 hours, but the washing line will be stopped when it works 8-12 hours.



    We also can do other material pelletizing system if you are interested in, all the machines we can design according your requirement.



    our machine after extruder to make this kind pellets. you also can add Color master to make the pellets looks better.

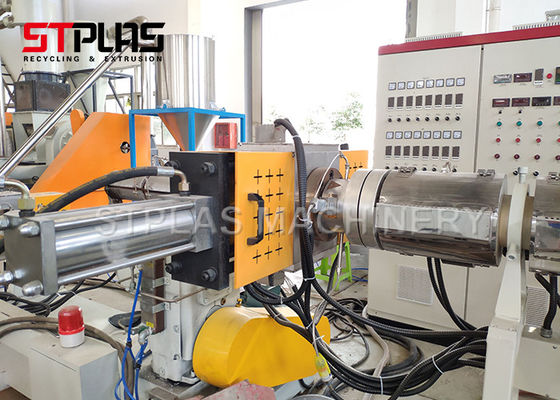

    Single screw extruder plastic granulating machine for PP PE material



    If you want to know more information , contact with us  freely.
